Desktop Small Storage Box Making Injection Machine with Partition Pen Holder Hollow out Office Pen Set Finishing Frame

Product Description

Desktop Small Storage Box with Partition Pen Holder Hollow out Office Pen Set Finishing Frame Making Injection Machine
Product Description

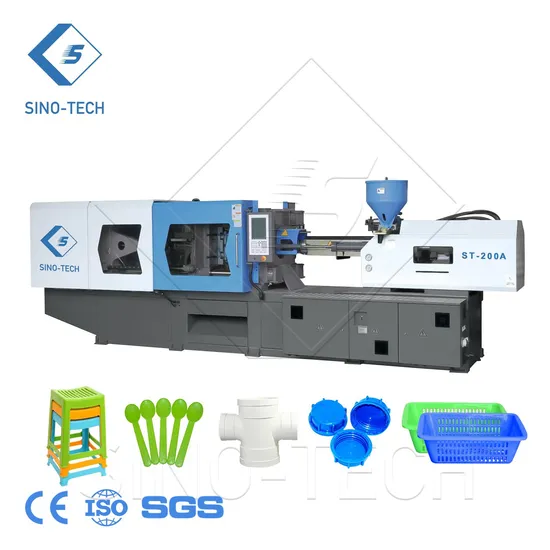

Sino-tech SElll Series High-performance High speed Thin-wall Injection Molding Machine.
Specially designed for high-speed thin-wall products, multiple-cavity products and relevant civil products in current market. The model is created in accordant with latest national design concept, combining decades of experience in design and manufacture of the company.
1.Higher work efficiency. According to features of injection, optimize and integrate injection, clamping, hydraulic and control units, which has greatly shortened the production cycle.
2.Stricter safety standards.Comply with national mandatory safety standard to guarantee operators' safety.
3.More perfect organization.Frame-type rack design; improve rigidity and strength on the basis of finite element analysis, which has greatly improved rack precision, reduced rack deformation and realized a more stable and smooth operation.
Product Parameters

Item		320SElll
		3200-1930
Screw diameter	mm	60	65	75
Theoretical shot volume	cc	919	1078	1436
Shot weight (PS)	g	836	981	1307
Shot weight (PS)	oz	29.5	34.7	46.2
Length/Diameter ratio	L/D	22.5	20.8	18
Injection pressure	MPa	210	179	134
Injection rate	cm³/sec	306	359	477
Injection stroke	mm	325
Max. Screw speed	rpm	224
Plasticizing capacity (PS)	g/s	49.3	55.4	77.9
Injection unit force	Ton	9.1
Carriage stroke	mm	350
Clamping force	Ton	320
Max. daylight	mm	1400
Clamping stroke	mm	700
Distance btwn. Tie bars	mm	680*680
Min mould dimension	mm	470*470
Mould thickness range	mm	250-700
Ejector force	Ton	11.1
Ejector stroke	mm	200
No. of ejector pins	unit	13
Max. motor power	kW	40.9
System pressure	MPa	17.5
Hydraulic pump capacity	L/min	220
No. of heater zones	unit	5+1
Heater input power	kW	22.15
Ultimate capacity	kw	64.05
Current	A	87.6
Net weight	Ton	11.52
Oil filling capacity	L	550
