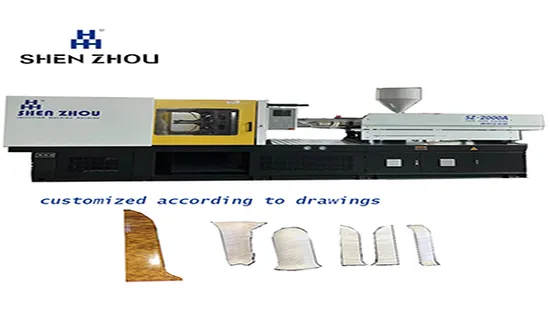

Injection Molding Machine Injection Plastic Machine Plastic Energy Saving Injection Molding Machine
| US$21,000.00-35,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SZ-3800A
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Plastic Processed
PP, PC, ABS, Pet, PVC, FRPP/PVC, PPR, HDPE, Mlldpe
Distance Between Tie Bars(mm)
680*680mm
Plasticizing Capacity(G/S)
60.5
Mold Height(mm)
250-710 mm
Ejector Number
13
Ejector Stroke(mm)
170 mm
Ejector Force(Kn)
90.7 Kn
Theoretical Shot Volume(Cm³)
1231cm
Injection Rate (G/S)
3575g/S
Injection Weight (G)
1120 G
Screw Speed (Rpm)
1-150
Screw Diameter (mm)
70 mm
Screw L/D Ratio
21
Weight (Kg)
15000
Transport Package
Wooden Box
Specification
3800KN
Trademark
ShenZhou
Origin
Jiangsu, China
HS Code
8477101090
Production Capacity
50 Set/Sets Per Month
Product Description
Standard Features of SZ-Series Injection Molding Machine SZ-3800A Parameter of Plastic Injection Molding Machine
| ITEM | UNIT | SZ-3800A | ||
| INJECTION UNIT | ||||
| SCREW DIAMETER | mm | 65 | 70 | 75 |
| SCREW LID RATIO | L/D | 22.6 | 21 | 19.6 |
| THEORETICAL SHOT VOLUME | CM3 | 1061 | 1231 | 1413 |
| SHOT WEIGHT(PS) | g | 966 | 1120 | 1286 |
| INJECTION PRESSURE | Mpa | 203 | 175 | 152 |
| THEORETICAL INJECTION RATE(PS) | g/s | 308 | 357 | 410 |
| PLASTICISING CAPACITY | g/s | 50.6 | 60.5 | 71.5 |
| SCREW TORQUE | N.m | 2860 | ||
| MAX.SCREW ROTATE SPEED | r/min | 150 | ||
| INJECTION STROKE | mm | 320 | ||
| CLAMPING UNIT | ||||
| MAX.CLAMPING FORCE K | KN | 3800 | ||
| MAX.OPENING STROKE | mm | 680 | ||
| SPACE BETWEEN TIE BARS | mm | 680×680 | ||
| MOULD HEIGHT | mm | 250-710 | ||
| MAX.DAYLIGHT | mm | 1390 | ||
| EJECTOR FORCE | KN | 90.7 | ||
| EJECTOR STROKE | mm | 170 | ||
| EJECTOR QUANTITY | 13 | |||
| OTHER | ||||
| PUMP MOTOR POWER | KW | 37 | ||
| PUMP PRESSURE | Mpa | 16 | ||
| HEATING POWER | KW | 25 | ||
| HEATING ZONE | 5 | |||
| SIZE | m | 6.8×2.0×2.3 | ||
| NET WEIGHT | t | 15 | ||
| OIL TANK CAPACITY | L | 820 | ||
| INTERNATIONAL DESIGNATION | 3800-2150 | |||
Company Profile
Packaging & Shipping
Certifications
FAQ
1Q.Do you have an entity factory?
A1 Yes,We are a factory integrating industry and trade and have a whole set of production process.
Q2.How long is our delivery period?
A2 Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 1-2 month.
Q3.What is the price of your injection molding machine?
A3 Our cost-effective performance is very high, the original parts of the machine are imported, wear-resistant, heat-resistant, high ductility.
Q4.How ahout your after-sales service?
A4 Our machines are guaranteed for life, if conditions permit, we will send engineers to overhaul.
