Through-Wall Terminal Plug-in 5 Pins 110A Pluggable Panel Terminal Block

Product Description

Product Description

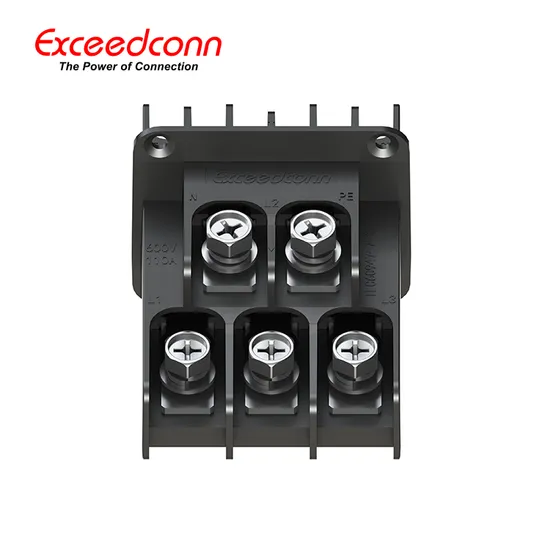

Through-wall terminal plug-in 5 pins 110A pluggable panel terminal block

Electrical Performance
Rated Voltage	600V AC
Rated Impulse Voltage	6000V
Rated Current	50A
Contact Resistance	≤10mΩ
Insulation Resistance	≥500MΩ
Mechanical Capacity
Rated Screw Torque	M5 5 N.m - 8 N.m M3 0.8N.m - 1N.m
Cable Gauge	25-50mm² Copper Conductor
Operational Environment
Ambient Temperature	-40ºC~+105ºC
Relative Humidity	5%~95%
Flammability Class(Insulator)	V-0
Material
Plastic	PC+PBT/PBT
Conductor	Copper Alloy with Ni Plating
Connecting Screw	Stainless Steel

Company Profile
Exceedconn is committed to provide lighting system connection solutions, products R&D, manufacturing and OEM service. The products are widely used in the fields of city lighting, landscape, solar energy and industrial control etc. Main customers are industry leading enterprises.With many years development, Exceedconn owns a professional and strong technical team. We can provide individualized connection solutions for different customer in different fields. Company has more than 50 patents in connection solutions till now.Adhering to the "rigorous, responsibility, cooperation" business philosophy, Exceedconn provides customer high quality products and service.Exceedconn---Your strong supports on connection solutions.
Certifications
Packaging & Shipping
FAQ
Q: Can you offer samples?
A: We can supply the free sample with freight collect.

Q: Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.

Q: What's your after-sales service?
A: We provide you with technical support and can help you to solve your customers' problem.

Q: Do you have a catalogue?
A: Yes, we have product catalogue.Please contact us online or send an Email for catalogue.
