Sunrain High Efficiency 2 Square Meter Flat Panel Solar Collector for Water Heating
Basic Info.
Model NO.
FPC200D
Certification
ISO, CE
Concentrating
Yes
Working Temperature Range
Medium Temperature
Type
Flat Panel
Application
Water Heater, Solar Thermal
Pipe Material
Copper
Product Name
Sunrain Flat Panel Solar Collector
Available Size
2/2.5 Square Meter
Brand
Sunrain or OEM
Coating
Blue Coating or Black Coating
Transport Package
Carton Box
Specification
2000*1000*80
Trademark
Sunrain
Origin
China
HS Code
84191200
Production Capacity
1000000 Sets/Year
Packaging & Delivery
Package Size
200.00cm * 100.00cm * 80.00cm
Package Gross Weight
40.000kg
Product Description
Working Principle:Flat plate solar collector is a device for absorbing solar radiation and transfer heat to the medium, which is a kind of special heat exchanger, the medium in the collector heat exchanges with the sun, Flat plate solar collector is composed of absorbing plate core, shell, transparent cover plate, insulation material and other related parts. Then heating circulation pipe and water tank, become a absorbing solar radiation equipment to heat the cold water. Product Parameters
| Item description | FPC200D | ||||

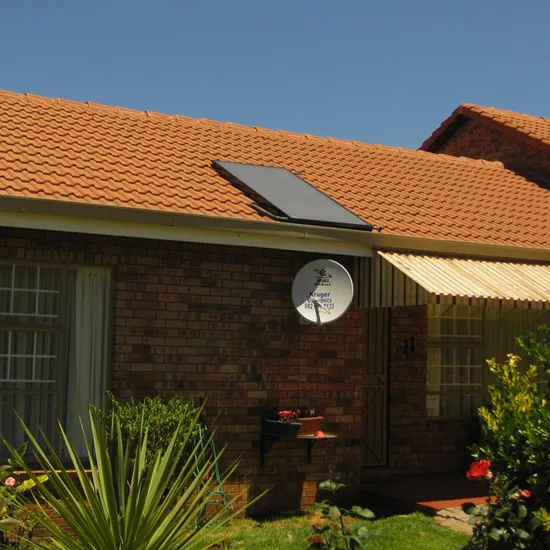

| Collector mounting possibilities (On-roof, In-roof, Façade, On Stand, etc.) | Flat roof/Slope roof | ||||
| Fluid content [L] | 1.66L | ||||
| Number of covers (for FPC=1, for ETC= tube amount | 1 | ||||
| Cover material | Textured tempered glass | ||||
| Cover solar transmittance [%] | 91 | ||||
| Gross Length / width / height [mm] | 2000*1000*80 | ||||
| Gross area [m2] | 2.0 | ||||
| Aperture Length / width / number [mm] | 1950*950 | ||||
| Aperture area [m2] | 1.85m2 | ||||
| Absorber Length / width / thickness [mm] | 1950*950*0.4 | ||||
| Absorber area [m2] | 1.85m2 | ||||
| Absorber material | Aluminium | ||||
| Solar absorptance [%] | 0.94 | ||||
| Hemispherical emittance [%] | 0.08 | ||||
| Absorber coating (type, brand name) | Titanium alloy | ||||
| Header tube material | Red copper | ||||
| Header tube length / inner diameter/ outter diameter [mm] | 1060/Φ22/Φ20.5 | ||||
| Riser tube material | Red copper | ||||
| Riser tube length / inner diameter/ outter diameter [mm] | 1885/Φ10/Φ9 | ||||
| Number of risers | 8 | ||||
| Thermal insulation material | Polyester cotton | ||||
| Thermal insulation thickness | 35 | ||||
| Thermal insulation mass [kg] | 1.9KG | ||||
| Thermal insulation thermal conductivity [W/(m·K] | 0.039 | ||||
| Casing material | Aluminium alloy | ||||
| Sealing material | EPDM | ||||
| Maximum operation pressure | 1.2MPa | ||||
| Maximum operation temperature | 120ºC | ||||
| Installation angel range of collector | 15°~75° | ||||
| Recommend heat transfer medium | Water or Antifreeze | ||||
