Automatic Calculation of Inner and Outer Diameters Vertical V Grooving Machine

Product Description

Product Description
Product advantages
1.Automatic calculation of inner and outer diameters
2.Automatic Cycle Programming
3.Visual Image Editing
4.Bending effect display
5.Tool holder self-lubricating system
6.Intermittent Working Hydraulic Station
Product Parameters

Model	RVT-1525	RVT-1532	RVT-1540	RVT-1560
Processing Length	2500 mm	3200 mm	4000 mm	6000 mm
Processing Width	1250/1500 mm	1250/1500 mm	1250/1500 mm	1250/1500 mm
Processing Thickness	0.4-5.0 mm	0.4-5.0 mm	0.4-5.0 mm	0.4-5.0 mm
Minimum edge distance	10 mm	10 mm	10 mm	10 mm
Tool holder (X-axis)	0-120 m/min	0-120 m/min	0-120 m/min	0-120 m/min
Feeding (Y-axis)	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
Toolholder(Zl-axis) up and down	0-10 m/min	0-10 m/min	0-10 m/min	0-10 m/min
Tool holder(Z2-axis) up and down	0-10 m/min	0-10 m/min	0-10 m/min	0-10 m/min
Repeated positioningerror of positioning axis	0.015 mm	0.015 mm	0.015 mm	0.015 mm
Minimum resolution of positioning axis	0.001 mm	0.001 mm	0.001 mm	0.001 mm
Table flatness	0.03mm	0.03 mm	0.03 mm	0.03 mm
Length	4200 mm	4900 mm	5700 mm	7700 mm
Width	2350/2600 mm	2350/2600 mm	2350/2600 mm	2350/2600 mm
Height	2000 mm	2000 mm	2000 mm	2000 mm

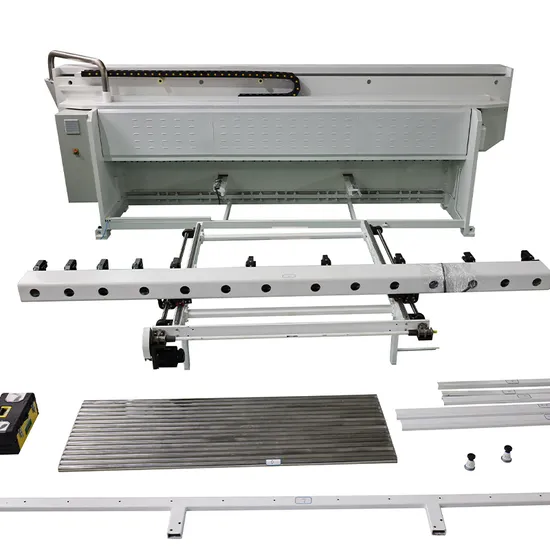

Detailed Photos
FAQ
1. Who are we?
A:We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%),
WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern
Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Africa(3.00%),MidEast(2.00%).
There are total about 50 people in our office.
2.Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
3.Which shipping way can you provide?
A: We can provide shipping by sea, by air, by express and etc according to customer requirements.
4.How to place order?
A: When you are ready to order, please contact
us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.
5.Do you have an inspection procedure for the product?
A: Yes, We have a strict inspection of product quality and packing.
