My1022 External Surface Grinding Machine

Product Description

Product Description

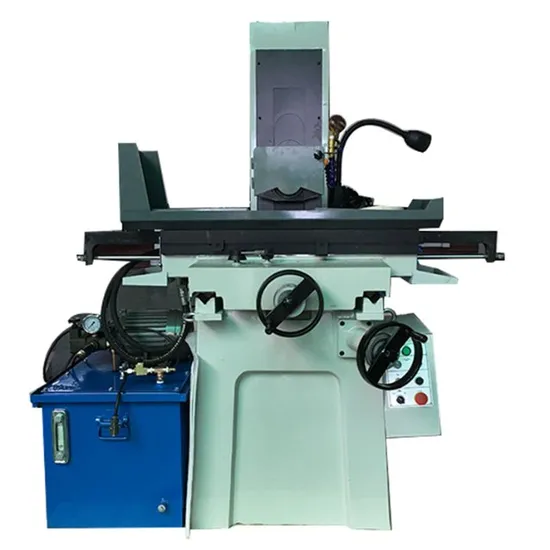

MY1022 External Surface Grinding Machine
A surface grinding machine is used to produce a smooth finish on flat surfaces. It is a widely used abrasive machining process in which a spinning wheel covered in rough particles cuts chips of metallic or nonmetallic substances from a workpiece, making its face of it flat or smooth.

Feature

The machine is reasonable in structure, has good rigidity, a beautiful appearance, and convenient operation. Using precision plastic guide surface and precision scraping, grinding imported hydraulic transmission, drive-by synchronous. The main mechanical valve is a special valve grinder, that is divided into two parts, the mechanical commutation control, throttle control part, and unloading function can realize the station start and stop. Grinding can be all kinds of the plane and complex shaped surfaces, suitable for motor without grinding the feed, according to user needs with a permanent magnet sucker or electromagnetic sucker. Hydraulic longitudinal table travel Quality castings and Precision ball bearing supporting the spindle Coolant system with nozzle and flow control valve Cast iron machine body and stand for maximum rigidity and smooth operation
Product Parameters

model				MY1022
Workbench	Table size(long X width X High)		mm	540×250×300
	Maximum stroke of worktable(X × Y)		mm	560×260
	Workbench T Groove(Number of slots X Slot width)		mm	1×14
Grinding head	Distance from center-line of grinding wheel shaft to worktable surface		mm	450
	Grinding wheel(WA46K5V)size(Outer diameter X width X the inside diameter of)		mm	φ200×20×Φ31.75
	Wheel speed	50HZ	r/min	2850
		60HZ		3360
Feed rate	Workbench portrait(about)speed(Promise)		m/min	3-20
	Workbench horizontal(Before and after)Feed rate	Successively(Step-less speed regulation)	mm/min	600
		Intermittent(Step-less speed regulation)	mm/Second-rate	0-5
		Every turn of the handwheel	mm	5.0
		Handwheel per grid	mm	0.02
	vertical(up and down)Feed handwheel feed	Every turn of the handwheel	mm	1.25
		Handwheel per grid	mm	0.01
Motor Power	Spindle motor		kw	1.5
	Cooling the motor		W	40
Hydraulic system	Hydraulic motor		kw	1.5
	Work pressure		Mpa	3
	Fuel tank capacity		L	80
	Maximum flow		L/min	18
Working accuracy	Parallelism of the machined surface to the base surface		mm	300:0.005
	Surface roughness		μm	Ra0.32
Machine weight	net weight		kg	950
	Gross weight		kg	1050
Dimensions(long X width X high)			mm	1680x1220x1720
Packing box size(long X width X high)			mm	1630x1290x1940
