High Precision CNC Milling Machine Control System for Professionals

Product Description

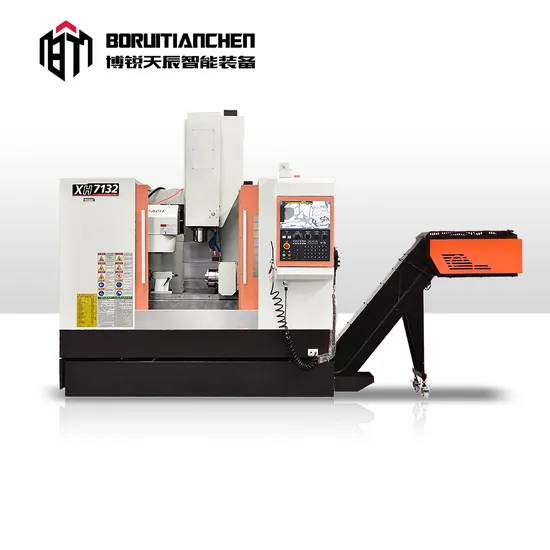

XH7132 Professional High Precision CNC Control System Milling Machine
Main technical specifications of cnc milling machine:

Table size	1000×320mm
Maxtable lo	400kg
T slot qty-width*distance	3-14x105
spindle speed	8000 rpm
spindle nose to table surface	100-600mm
Spindle nose to table surface(mm)	415mm
Spindle taper	BT40
Main motor power	3.7kw (servo)
X axis travel	600mm
Y axis travel	400mm
Z axis travel	500mm
X/Y/Z axis rapid feed	48/48/36m/min
Positioning accuracy	±0.008mm
Repeatabeility accuracy	±0.005mm
Net Weight	3000 kg
Overall Dimension	1900X1620X2000

The main machine tool parts

Serial number	Name	model	Origin	Quantity
1	Spindle unit	BT40	Taiwan posn	1
2	Pressed cylinder		Taiwan Haocheng	1
3	ATC	16	Taiwan okada	1
4	X Ball Screws		Taiwan Hiwin	1
5	y Ball Screws		Taiwan Hiwin	1
6	Z Ball Screws		Taiwan Hiwin	1
7	guide	X, Y,Z all is linear way	Taiwan Hiwin	3
8	Cooling the pump	PMY-25-5	china	1
	Lubrication system	Single wire damping	Taiwan Hurun	1
10	Pneumatic system		Taiwan Airtac	1

our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
