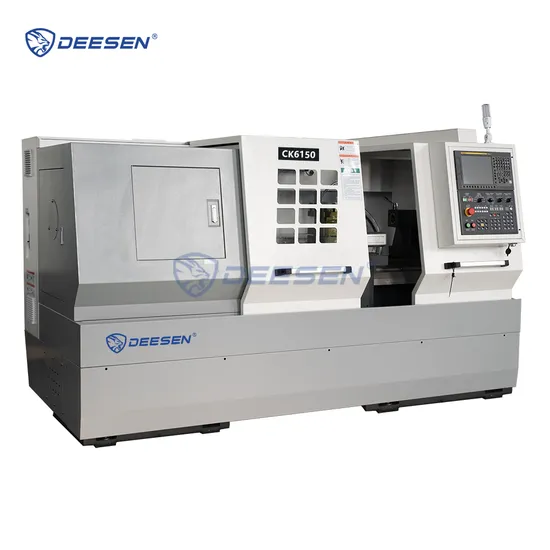

Ck6150 Made in China Easy Flexible Operation Cost Effective Horizontal Flat Bed CNC Lathe

Product Description

Ck6150 Made in China Easy flexible operation Cost effective Horizontal Flat Bed CNC Lathe
Product Description
CK series CNC Lathe machine is and economical, practical type machine tools with good quality.The machine has a very wide use which is suitable for internal and external turning, tapering, circular arc, thread, boring, reaming of axis and disk workpiece. It also can achieve non-circular curve machining. You can choose the CNC system and optional accessories according to your requirement
Product application:
Machine can automatically process the inside cylinder surface ,cone surface, circular arc surface ,end face ,such as processing ,and also can process the single and multiple threads in metric ,inch and other standards.
The main performance characteristics:
CNC lathe features
1. A high strength ,widening the carriage ,suitable for heavy cutting
2. Four position electric turret
3. Frequency conversion stepless speed regulation
4. Standard configuration: manual chuck
5. Optional configuration: hydraulic chuck
Product Parameters
Product main technical specifications:

SPECIFICATIONS	Units	CK6150
Swing over bed	mm	500
Swing over cross slide	mm	260
Distance between centers	mm	750/1000/1500/2000
Spindle bore	mm	52(Optional 80)
Spindle bore taper	-	MT6
Spindle nose type	-	A2-6(A2-8)
Spindle speed steps	rpm	Stepless
Spindle speed range		1800
Turret/tool post	-	Electric 4 position
Tool size	mm	25*25
X axis travel	mm	250
Z axis travel	mm	500/750/1250/1750
X axis rapid traverse	mm/min	6000
Z axis rapid traverse	mm/min	8000
Tailstock quill diameter	mm	65
Tailstock quill taper	-	MT5
Tailstock quill travel	mm	140
Main spindle motor	kw	5.5
Coolant pump motor	kw	0.125
Weight for 750	kg	1600
Weight for 1000	kg	1700
Weight for 1500	kg	1900
Weight for 2000	kg	2100
Dimension for 750	mm	2200*1700*1750
Dimension for 1000	mm	2500*1700*1750
Dimension for 1500	mm	3000*1700*1750
Dimension for 2000	mm	3500*1700*1750

Detailed Photos
PRECISION CHUCK
Standard with Manual chuck,Optional:hydraulic chuck or pneumatic chuck.
TOOL POST/TURRET
Standard with 4 staion electrictool
post ,6/8 station electric turret is optional.
QUENCHING MACHINE GUIDE
Super audio quenching guide rail harder;500mm bed width.

SPINDLE
52/82/103 spindle hole,manual 3gears speed ,suitable for power cutting;
independent spindle is optional
TAILSTOCK
Standard with manual tailstock, Optional:Hydraulic or pneumatic type tailstock.
CNC CONTROLSYSTEM
Standard :Fanuc ,
Optional :Siemens,GSK,Syntec, Mitsubishi and others.
