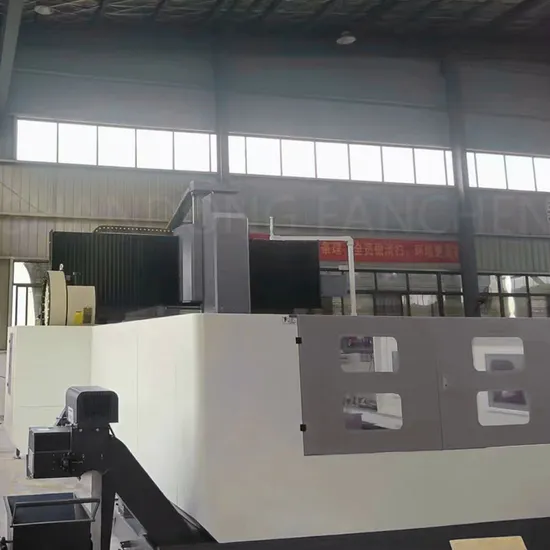

Large Multi-Functional Gantry CNC Machining Center Gmb4022 4030
| US$330,000.00-870,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GMB2022
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
Five-Axis Gantry Machining Center
Certification
GS, CE, ISO 9001
Condition
New
Bed Dimension
4000/2000mm
Maximum Load-Bearing of The Workbenchng
12t
Xmaximum Stroke of Axise Groove
4200mm
Yshaft Stroke
2500mm
Zmaximum Stroke of Axis
1000mm
Maximum Power of The Spindle Motor
18.5/22kw
Speed of Mainshaft
6000rpm
Distance Between The Gantry Columns
2200mm
Taper Hole of Spindle
Bt50
Positioning Accuracy
0.015mm
Outline Dimension
10200/5300/5200mm
Machine Tool Weight
35t
Transport Package
Xyloid
Specification
14000/5200/5200mm
Trademark
FANCHEN
Origin
China
Production Capacity
100
Packaging & Delivery
Package Size
1020.00cm * 530.00cm * 520.00cm
Package Gross Weight
12000.000kg
Product Description
| Content | Apellation | Specifications and models | Specifications and models |
| Workbench | Bed dimension | 4000/2000mm | 4000/3000mm |
| Maximum load-bearing of the workbench | 12T | 22000kg | |
| Range of work | XMaximum stroke of axis | 4200mm | 4200mm |
| YMaximum stroke of axis | 2200 mm | 3400mm | |
| ZMaximum stroke of axis | 1000mm | 1200mm | |
| Principal axis | Range of speeds | 6000 r/min | 6000r/min |
| Maximum power of the spindle motor | 18.5/22 kw | 22/26kw | |
| Distance from spindle end face to workbench | 200-1200 mm | 200-1200 mm | |
| Distance between the gantry columns | 2200mm | 3400mm | |
| Spindle taper | BT50/155 | BT50/155 | |
| Servo | Three-axis motor torque | 32/32/32 NM | 32/32/32 NM |
| Feed Speed | Quick travel | X Axle12m/min | X Axle 10mm/min |
| Y Axle12m/min | Y Axle12mm/min | ||
| Z Axle10m/min | Z Axle10mm/min | ||
| Maximum cutting speed | 10000 mm/min | 10000mm/min | |
| positioning Accuracy | X/Axle | 0.01 mm | 0.01mm |
| Y/Axle | 0.01 mm | 0.01mm | |
| Z/Axle | 0.01 mm | 0.01mm | |
| Repeat positioning accuracy | X/Axle | 0.008 mm | 0.008mm |
| Y/Axle | 0.008mm | 0.008mm | |
| Z/Axle | 0.008 mm | 0.008mm | |
| Perpendicularity | X/Y/Axle | ±0.015/300 mm | ±0.015/300 mm |
| Outline dimension | 10200/5200/5300 | 11000/6300/5400 | |
| Machine tool weight | 35T | 52T | |
FAQ
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
