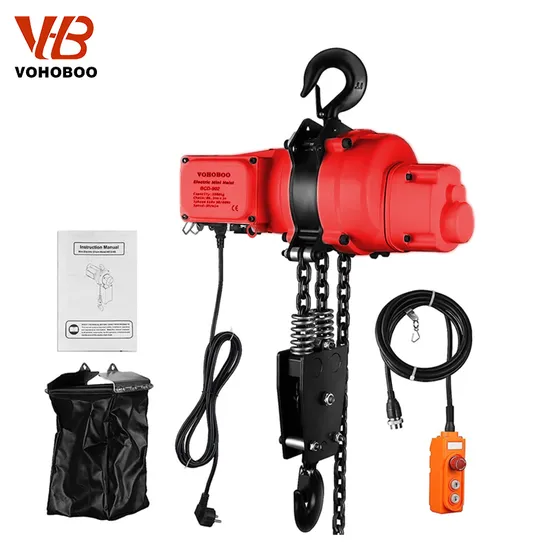

Single Phase Mini Small Portable Electric Chain Hoist

Product Description

Product Description
USAGE:
The mini electric chain hoist can be widely used in hanging for engineering, plant hoist operations, civil hydropower installed piping, Warehousing and shipping the goods it can be used to lift, raise and, drag. lt's compact, lightweight, economy and effective, and easy to obtain single-phase power supply.
SPECIAL FEATURES:
Motor system using brushless motor series excited of high efficiency industrial grade; there are two selected configurations of single phase voltage (110v/ 220V); its enameled heat levels up to 200 degrees, specifically designed for long crane.

Brake system
dual brake system with one mechanical ratchet gear brakes and the other brake resistor short circuit controller, formula oiled copper disc brakes with high friction coefficient, which needs no adjustment; immediately brake in power outage or malfunction, great safety and long life.

Electronic control system
direct control which saves ted lous lines and has the advantages of easy maintenance, low failure rate, security and
stability; control switch with separate power line and quick connector makes it easy to carry.
Gear system
Use the transmission plus planetary reduction gear with the best efficiency;, planetary gear set has two steel heat
treatment operating idlers which can share power, and the life is more than 2 times the general driving type.
Product Details
Product Advantages
Product Parameters

Model	Capacity(kg)	Power(voltage)		Phase	Lift(Meter)	Chain(Falls)	Load chain(mm)
BCD-825	250	100-200	200-240	1	3	1	6.3
BCD-901	500	100-120	200-240	1	3	1	6.3
BCD-902	1000	100-120	200-240	1	3	2	6.3
