High Speed Automatic Homogenizer Emulsifier Eye Shadow Lipstick Mascara Mixing Production Line

Product Description

High Speed Automatic Homogenizer Emulsifier Eye Shadow Lipstick Mascara Mixing Production Line
Lipstick Heating Mixing Tank
Lipstick heating mixing pot is applicable to the mixing of liquid paste raw materials such as lipstick, lipstick, lip gloss, lip oil, lip honey, shampoo, shower gel, etc. Lipstick heating mixing pot uses a double-layer material barrel for oil separation heating, which has the functions of heating, stirring, and melting materials.
Parameter

Barrel Volume	Totle Power	Spindle speed	Temperature Range	Machine Size
30L	2.2kw	0-90r/min	0-150ºC	600x630x1200mm
50L	4.5kw	0-90r/min	0-150ºC	680x550x1600mm
70L	4.8kw	0-90r/min	0-150ºC	720x580x1650mm
100L	5.2kw	0-90r/min	0-150ºC	800x650x1700mm
150L	6.8kw	0-90r/min	0-150ºC	860x860x1800mm
500L	12kw	0-90r/min	0-150ºC	1200x960x2000mm

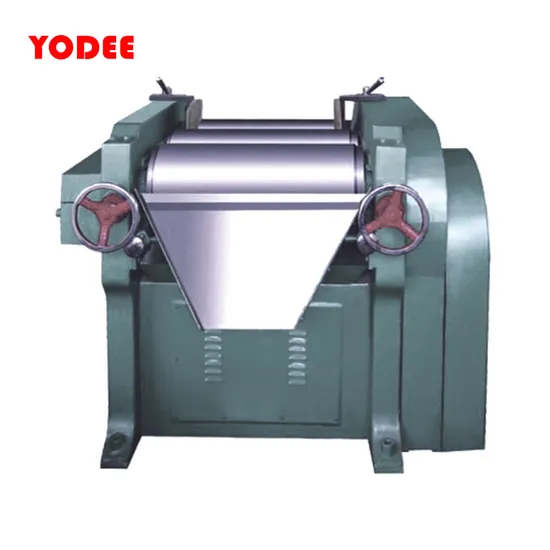

Three-Roll Grinder Machine
The three roll grinder is mainly used for various red slurries, paints, inks, pigments, plastics and other slurries, especially suitable for grinding and dispersing products with high viscosity and fine particle size requirements. The three roll grinder achieves grinding effect by squeezing and rubbing the surfaces of three horizontal rollers at different speeds. The roller material comes in different specifications such as cold hard alloy and anti rust alloy, which are suitable for different material usage requirements. The machine body comes in two types: cast iron and stainless steel. The three roll outer cover is made of hard nickel alloy, and the machine is equipped with a water cooling circulation device.
Parameter

Model	S65	S150	S200	S260
Roller Diamter	65mm	150mm	200mm	260mm
Roller Length	125mm	300mm	500mm	695mm
Slow Roller speed	32	25.3	22	19.1
Middle Roller Speed	89	63.25	63	54.5
Fast Roller Speed	250	152	155	155.3
Roller Speed	1400	1420	970	970
Power	0.75	2.2	4	7.5
Machine Size	400x400x420mm	820x800x920mm	1200x1180x1100mm	1645x1350x1100mm

Lipstick Mold Pre-heating Machine
This machine is specifically designed to preheat lipstick molds, reduce the defect rate of lipstick production, and avoid the occurrence of defective products such as bubbles and pinholes caused by the alternation of mold heat and cold.
Parameter

Power Supply	220V/50HZ
Total Power	1.2kw
Production Capacity	2-5 S/mould
Material	Stainless(SUS304)
Machine Size	500x700x1000mm
Weight	50KG

12 Heads Lipstick Filling Machine
Lipstick filling machine is designed for filling liquid cream cosmetics, such as lipstick, pen lipstick, eyebrow pencil, lip oil, lipstick, etc. The independent mixing and temperature control design of the material bucket meets the diverse needs of raw materials. Adopting advanced automation technology (human-machine interface, PLC program control) to simplify system operation procedures, overall performance is more stable. Easy to operate and user-friendly.
Parameter

Power Supply	380V/50HZ
Total Power	7.5kw
Temperature Range	0-120ºC
Volume	20Lx2
Stirring Speed	0-90r/min
Production Capacity	8S/mould
Machine Size	1250x9500x2000mm
Weight	320KG

Lipstick Frozen Tunnel
Feature
1. The lipstick freezing tunnel body is made of all stainless steel, with double-layer insulation to reduce the loss of cold air, and double-layer sealing of the door leaves to enhance the sealing performance of the body.
2. There is a conveyor belt to facilitate the connection of lipstick production process, simplify workflow and improve efficiency.
3. Using air cooling method, the freezing speed is fast and it is not easy to form water droplets.
Parameter

Model	3P	5P
Power	2.1kw	3.5kw
Conveyor belt size	2500x300mm	4000x300mm
Min Temperature	-15ºC	-20LºC
Freezing Time	3-5min	1-3min

Lipstick Demoulding Machine
Feature
1. Design for lipstick demolding Ordinary shaped lipstick, silicone lipstick, and slanted lipstick can all be demolded. After manually inserting the red tube, it can be placed on the machine for automatic mold removal and demolding.
2. PLC touch screen: easy to operate, can directly set the mold taking, pulling, and releasing time on the screen. Reduce production processes and improve work efficiency
3. Machine diversification: 12 hole aluminum mold and 10 hole silicone mold only require partial replacement of accessories.
Parameter

Power	1.5kw
Speed	3-5min
Production Capacity	2-5 S/mould
Head	10 / 12 heads
Machine Size	920x850x580mm
Weight	280KG

Parameter
If you cannot accurately describe your needs, please send an inquiry directly to YODEE, the YODEE team will recommend suitable equipment for you according to the customer's limited description, or customize the equipment as required. Please write your requirements and information to Contact YODEE directly at any time, the YODEE TEAM will respond you within 12 hours.
About YODEE
YODEE was born in Guangzhou, which has the tittle of world processing factory in 2012. Through te design, manufacturing and sales experience accumulated in the past ten years, we have a complete factory, an excellent team and many very important domestic and foreign partners.
YODEE's equipment mainly uses SUS304 and SUS316 stainless steel. After completing the selection of material, YODEE will cut according to the drawings of the machines required by each customer and according to the specifications and sizes. we try to use full-page stainless steel materials instead of spliced stainless steel materials.
Preliminarily rough grinding and polishing product, use sand abrasice to grind the workpiece with rough surface to remove the macro uneven surface. Next, futher pokish on the basis of rough grinding to remove rough grinding marks. so that the surface of the workpiece is gradually smooth and bright. Finally, so that the workpiece can achieve the most ideal brightness and aesthetics.
After-sale Service
1. YODEE products will provide a one-year machine warranty service, and accessories will be replaced free of charge.
2. YODEE will provide lifelong machine technical support and technical support services for the later transformation of the old factory.
3. YODEE will provide engineers to guide the installation of equipment and equipment maintenance training services at the customer's factory if necessary.
4. YODEE can accept customer engineers to Chinese factories for equipment training.
Packing
1.Stretch protective film protect machine from collision.
2.The bottom support strengthens.
3.Nailing Complete
4.Loading and shipping
Shipment Service
1. If you have a transportation agent, you can directly arrange to come to our company to pick up the goods.
2. If you do not have a transportation agent yet, YODEE will provide you with different ways of machine transportation services (sea, air, express, rail transportation) according to different situations for choice.
3. Under special circumstances, if the machine exceeds the shipping size of the container, YODEE will still plan and provide you with the best shipping plan for you to choose.
Remark
All machine can provide customized service, Please write your requirements and information to Contact YODEE directly at any time, the YODEE TEAM will respond you within 12 hours.
