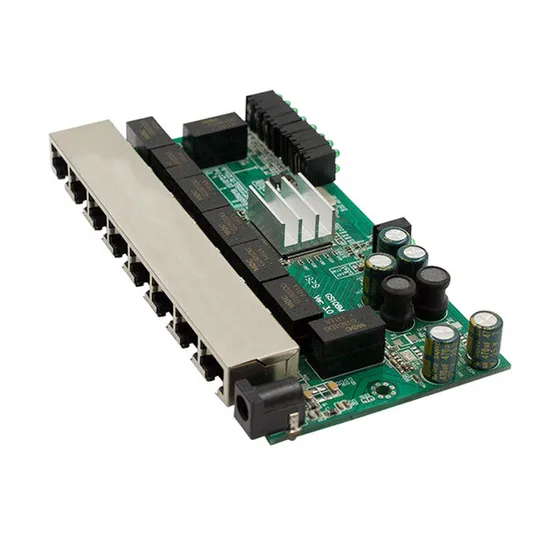

One Stop Service Customized PCBA & PCB Assembly Gigabit Ethernet Switch Fiber Optical Media Converter PCBA

Product Description

Detailed introduction:
Product Description What we offer:
Quote Requirement:
Gerber file of the bare PCB board
BOM (Bill of material) for assembly
To short the lead time, please kindly advise us if there is any acceptable components substitution (for PCB assembly).
Testing Guide & Test Fixtures if necessary
Programming files & Programming tool if necessary
Schematic if necessary
Even if you do not have Gerber file , we can also Copy it for you as you need send us the sample
Products Application:
Communication, internet, industrial control, computer application, consumptive electronics, spaceflight, curative application Etc.

Specifications	Details
Material Type	FR-4, CEM-1, CEM-3, Aluminium Clad,Arlon*,Teflon,Taconic, Rogers*, Polyimide*, Kapton,Dupont
Material Thickness ( in inches)	0.062", 0.080", 0.093", 0.125", 0.220", 0.047", 0.031", 0.020", 0.005"
Layer count	1 to 28 Layers
Max. Board Size	23.00" x 35.00"(580mm*900mm)
IPC Class	Class II, Class III , Class 1
Annular Ring	5 mil/side or Greater (Min. Design)
Finish Plating	Solder(HASL), Lead Free Solder(HASL), ENIG (ELectroless Nickel Immersion Gold), OSP, Immersion Silver,Immersion Tin, Immersion Nickel, Hard Gold, Other
Copper Weight	0.5OZ-7OZ
Trace/Space Width	3 Mils or Greater
Drill Clearance	0.1mm(laser drilling)
Plated Slots	0.036 or Greater
Smallest Hole (Finished)	0.1mm or Greater
Gold Fingers	1 to 4 Edge (30 to 50 Micron Gold)
SMD Pitch	0.080" - 0.020" - 0.010"
Soldermask Type	LPI Glossy, LPI-Matte, SR1000
Soldermask Color	Green, Red, Blue, Black, White, Yellow,
Legend Color	White, Yellow, Black, Red, Blue
CNC Route Point	Any
Minimum Route Width	0.031"
Scoring	Straight Lines, Jump Scoring, Panel Edge to Edge, CNC*
Body Gold	HARD*, IMMERSION* (up to 50 MICRON GOLD)
Data File Format	Gerber 274x with embedder aperture
Fab. Drawing Format	DXF, HPGL, DWG, PDF, Gerber
E.T Testing	Flying Probe, Single Sided, 1up Plate, Clampshell, Net List
Counter Sink / Counter Bore	Availiable up to 0.250 Diameter
Control Impedence	Yes
Blind Vias / Buried Vias	Yes
Peelable Mask	Yes
Carbon	Yes

Product Show:
Certifications:
Packaging & Delivery:

Packaging Detail:	Anti-static bag, bubble pack, carton box,Vacuum...
Delivery Detail:	3-15Days, delivery just-in-time
