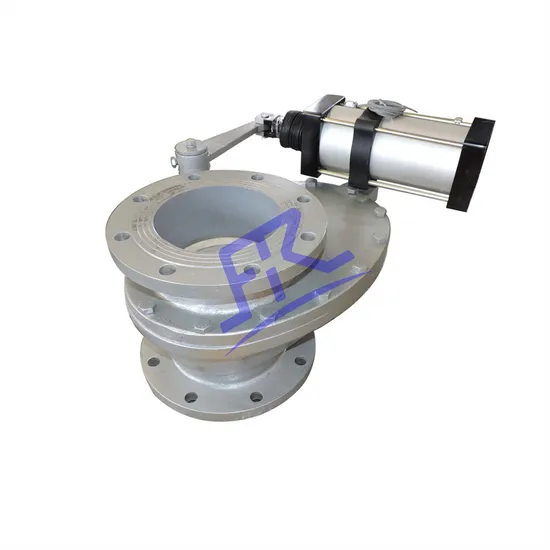

Frz643tc Pneumatic Flanged End Anti Wear Ceramic Rotary Disc Feeding Gate Valve

Product Description

Product Description
FREE-VALVE brand Pneumatic Ceramic Rotary Gate Valves are designed for pressurized and vacuum systems including pneumatic conveying systems, discharge and vent applications in steel plant and coal power. The whole of ceramic sealing faces of the valves are well ground and polished, which is ensure a reliable sealing performance of the valve.
Features
1. The cylinder piston rod does not contact with the medium directly, which greatly prolongs the service life of the cylinder and has a higher service temperature without damaging the cylinder.
2. The sealing faces of the valve are made of toughened engineering ceramics with good abrasion resistance and prolonged service life.
3. Product with customized structural length and connection size is available.
4. The valve disc rotational motion can avoid the ash deposition on the sealing surface during opening and closing, so the valves have much longer service.
5. The valve body outlet end adopts slant structure, which is advantageous to the medium entering the valve cavity to fall automatically, preventing the medium in the valve cavity accumulation and causing the valve not to open properly.
6. The spring between the disc and disc seat is loaded with a floating connection. The spring force of the disc always matches the valve seat, ensures the sealing of the valve, and also helps to compensate for expanding when heated and contracting when cooled ,and sealing surface wear.
Technical Specification

1	Size Range	NPS4~NPS12,DN50~DN300
2	Nominal size	Class 150 /PN6 /PN10
3	Applicable Temperature	0~200ºC
4	Connection Type	Flange
5	Disc	Carbon steel+ceramic,stainless steel+ceramic
6	Seat	ceramic
7	Pressure test	Pressure test
8	Face to Face	GB/T12221, ASME B16.10
9	Operating Type	Pneumatic

Main outline and connection dimensions

DN	PN	L	D	D1	D2	n-∅d
DN125	PN10	265	250	210	186	8-∅18
DN150	PN10	265	285	240	210	8-∅22
DN200	PN10	305	340	295	266	8-∅22
DN250	PN10	340	395	350	320	12-∅22
DN300	PN10	340	440	400	370	12-∅22

Note:Face to Face dimension "L" can be customized according to customer requirements
Application
FREE-VALVE's Pneumatic Ceramic Rotary Gate Valves are suitable for steel plant, cereals transport system, cement transport systems and EP system in coal fired power plant. In these applications, pneumatic conveying method is used to reduce manpower demand, and improve system efficiency and reliability, and is easy to realize automation.
