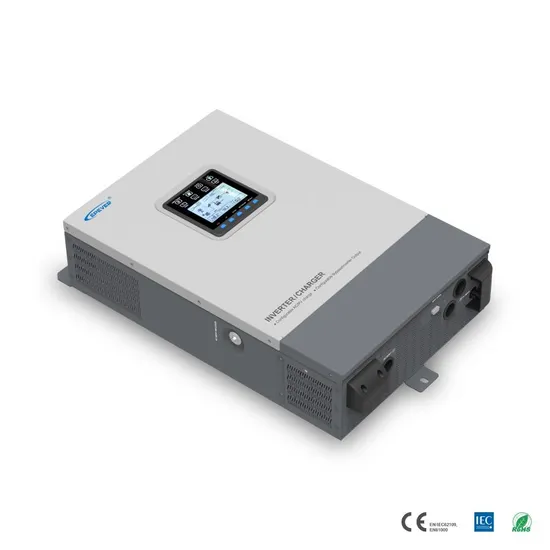

EPEVER UP5000-HM8042 Hybrid 48V 5KW inverter charger

Product Description

Product Description
EPEVER UP5000-HM8042 Hybrid 48V 5KW inverter charger
UPower-Hi series is an inverter charger that supports diversified energy management modes on solar/utility/genera- tor charging,and utility/inverter power supply to the AC loads. To maximize solar energy utilization, users can choose energy sources accordingto actual needs and flexibly take the utility as a supplement. This inverter charger can raise the system's power supply guarantee rate, which is suitable for solar energy, utility/oil generator hybrid systems. It aims to provide users with high-quality, high-stability, and high-reliability electrical energy.
Product Features

Item	UP2000-HM6021	UP3000-HM5041	UP2000-HM6022	UP3000-HM5042	UP3000-HM10022	UP5000-HM8042
Nominal battery voltage	24VDC	48VDC	24VDC	48VDC	24VDC	48VDC
Battery input voltage	21.6~32VDC	43.2~64VDC	21.6~32VDC	43.2~64VDC	21.6~32VDC	43.2~64VDC
Max. battery charging current	60A	50A	60A	50A	100A	80A
Inverter output
Continuous output power	2000W	3000W	2000W	3000W	3000W	5000W
Max. surge power	4000W	6000W	4000W	6000W	6000W	8000W
Output voltage range	110VAC(-3%~+3%); 120VAC(-10%~+3%)	110VAC(-3%~+3%); 120VAC(-10%~+3%)	220VAC(-6%~+3%); 230VAC(-10%~+3%)	220VAC(-6%~+3%); 230VAC(-10%~+3%)	220VAC(-6%~+3%); 230VAC(-10%~+3%)	220VAC(-6%~+3%); 230VAC(-10%~+3%)
Output frequency range	50/60Hz±0.2%
Output wave	Pure sine wave
Load power factor	0.2-1(Load VA ≤ Continuous output power)
Distortion THD	THD≤5% (Resistive load)	THD≤5% (Resistive load)	THD≤3% (Resistive load)	THD≤3% (Resistive load)	THD≤3% (Resistive load)	THD≤3% (Resistive load)
80% rated output efficiency	89%	91%	92%	92%	92%	92%
Max. rated output efficiency	88%	90%	91%	90%	91%	91%
Max. output efficiency	90%	92%	93%	93%	93%	93%
Utility charging
Utility input voltage	88VAC~132VAC(Default); 80VAC~140VAC (Programmable)	88VAC~132VAC(Default); 80VAC~140VAC (Programmable)	176VAC~264VAC(Default); 90VAC~280VAC (Programmable)	176VAC~264VAC(Default); 90VAC~280VAC (Programmable)	176VAC~264VAC(Default); 90VAC~280VAC (Programmable)	176VAC~264VAC(Default); 90VAC~280VAC (Programmable)
Utility input frequency	40~65Hz
Max. utility charge current	60A	40A	60A	40A	80A	60A
Solar charging
Max. PV open circuit voltage	250V(At minimum temperature); 220V(25ºC)	250V(At minimum temperature); 220V(25ºC)	450V(At minimum temperature); 395V(25ºC)	450V(At minimum temperature); 395V(25ºC)	450V(At minimum temperature); 395V(25ºC)	500V(At minimum temperature); 440V(25ºC)
MPPT voltage range	60~200V	60~200V	80~350V	80~350V	80~350V	120~400V
Max. PV input power	2000W	3000W	2500W	4000W	4000W	4000W
Max. PV charging power	1725W	2875W	1725W	2875W	2875W	4000W
Max. PV charging current	60A	50A	60A	50A	100A	80A
Equalize charging voltage	29.2V(AGM default)	58.4V(AGM default)	29.2V(AGM default)	58.4V(AGM default)	29.2V(AGM default)	58.4V(AGM default)
Boost charging voltage	28.8V(AGM default)	57.6V(AGM default)	28.8V(AGM default)	57.6V(AGM default)	28.8V(AGM default)	57.6V(AGM default)
Float charging voltage	27.6V(AGM default)	55.2V(AGM default)	27.6V(AGM default)	55.2V(AGM default)	27.6V(AGM default)	55.2V(AGM default)
Low voltage disconnect voltage	21.6V(AGM default)	43.2V(AGM default)	21.6V(AGM default)	43.2V(AGM default)	21.6V(AGM default)	43.2V(AGM default)
Tracking efficiency	≥99.5%
Temperature compensate coefficient	-3mV/ºC/2V (Default)
General
Surge current	50A	56A	50A	56A	60A	95A
Zero load consumption	<1.6A	<1.2A	<1.8A	<1.2A	<1.8A	<1.2A
	(without PV and utility connection, turn on the load output)
Standby current	<1.2A	<0.7A	<1.2A	<0.7A	<1.2A	<0.7A
	(without PV and utility connection, turn off the load output)
Dimension(HxWxD)	607.5x381.6x127mm	642.5x381.6x149mm	607.5x381.6x127mm	607.5x381.6x149mm	642.5x381.6x149mm	642.5x381.6x149mm
Net Weight	15kg	19kg	15kg	18kg	19kg	19kg
Operating temperature range	`-20ºC~50ºC (derating above 30ºC )
Relative humidity	< 95%(N.C.)
Enclosure	IP30
