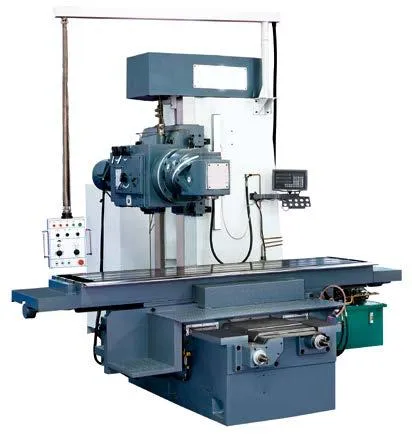

X716, Bed-Type Universal Milling Machine

Product Description

Product Description
Performance
X716 Cooperate with Nambuk Co.,Ltd of South Korea in producing the machine. Advanced design, large load and wide machining range.
Swivel head when horizontal milling
Product Parameters

	Specifications	Units	X716
	Table size	mm	2500×575
	Table travel(X,Y,Z)	mm	1800×600×900
	Min. distance from hor. spindle axis to worktable surface	mm	30
	Min. distance from vertical spindle nose to worktable surface	mm	49
	Distance from vertical spindle axis to column guideway	mm	110
	Spindle speed range/steps	rpm	40- 1200 /12
	Number/Width/Distance of T-slot	mm	3-22- 152
	Spindle taper		ISO50
	Longitudinal, transverse feed speed range	mm/min	20-2200
	Rapid feed speed(X,Y)	mm/min	3000
	Feed speed range	mm/min	12- 1320
	Rapid feed speed(Z)	mm/min	1800
	Spindle motor power	kW	11
	Max. load of worktable	kg	3000
	Overall dimension(L×W×H)	mm	4300×3200×3300
	Machine weight	kg	10000
