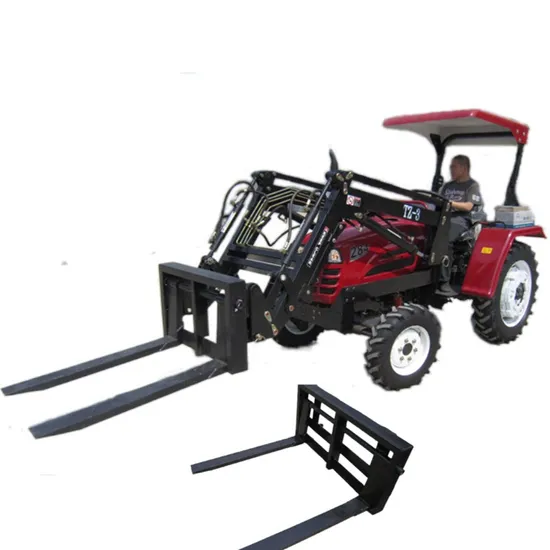

Pallet Fork Mounted on Farm Tractor for Wooding Working

Product Description

Product Description
Front End Loader can match the Bucket, /Pallet Fork/Log Grab/Bale Grab in front of hydraulic beams, there are kinds of models which for different tractors.
Product Parameters
Front end loader specifications:

Model:	TZ-3	TZ-4	TZ-8	TZ-10	TZ-12
Tractor power required:	20-30hp	35-50hp	50-70hp	80-90hp	100-130hp
Max dump height:	1800mm	2000mm	2200mm	2400mm	2800mm
Max dump distance:	900mm	900mm	960mm	1000mm	1100mm
Bucket rollback angle:	42°	42°	42°	42°	42°
Max scraping depth:	100mm	140mm	160mm	160mm	160mm
Max unload angle:	47°	47°	46°	46°	46°
Lifting time to pivot pin:	7S	7S	8S	8S	10S
Descending time:	3.5S	3.5S	4S	4S	10S
Bucket volume	0.2m³	0.23m³	0.43m³	0.6m³	0.65m³
Bucket option:	4 in 1 bucket	4 in 1 bucket	4 in 1 bucket	4 in 1 bucket	4 in 1 bucket
Total size with tractor:	4.1*1.6*1.6m	4.1*1.6*1.6m	4.9*1.75*2.5m	4.9*1.8*2.5m	5.2*1.8*2.6m

------------------
Pallet fork specifications:

Photo	Model	Fork length	Bracket width	Load capacity	Height	Weight		Matched tractor power
	DT04	1300mm	1130mm	400kg	600mm	130kg		25-50hp
	DT06	1300mm	1230mm	600kg	700mm	160kg		60-100hp

-------------
Log Grab specifications:

Photo	Model	Fork length	Bracket width	Grabbing dia.	Load capacity	Weight		Matched tractor power
	GT04	1100mm	1100mm	10-80cm	400kg	180kg		25-50hp
	GT06	1200mm	1200mm	15-95cm	600kg	220kg		60-100hp

-------------
Bale Grab specifications

Photo	Model	Bale dia.		Grab load		Weight		Matched tractor power
	DK05	50-120cm		400kg		180kg		25-50hp
	DK10	60-160cm		750kg		220kg		60-100hp
	CK12	90-120cm		1250kg		300kg		100hp--130hp

Packaging & Shipping

Workshop Show

FAQ
1, What tractors can you match the attachments tools?--- We can supply the tools for tractors from 25hp to max 260hp.2,What is the lead time normally?-- About 10-15days after getting the deposit money from client;3,What is the payment terms?-- T/T. 50% deposit in advance and 50% balance before shipment;4,How about the shipment method?-- Normally, if only one tractor without cab, we will make plywood case with steel frame packing to pack the tractor and do LCL shipment; If the tractor with cab, we suggest to use one single container to ship it.5, How about your quality control?--We have engaged in the tractor field for many years, now we have our own brand and have passed the EU CE certification, the quality is ensured.6, How about your warranty and after-sale service?---The warranty for the tractor is 1 year, if any part broken within one year, we will send the parts to client by express.If there is question about the operation or using, we will give technical support to guide client to do well.7, Any free spare parts supply for the tractor?--- Normally, we will give extra oil and diesel fitlers for spare parts.But it depends the order quantity.
