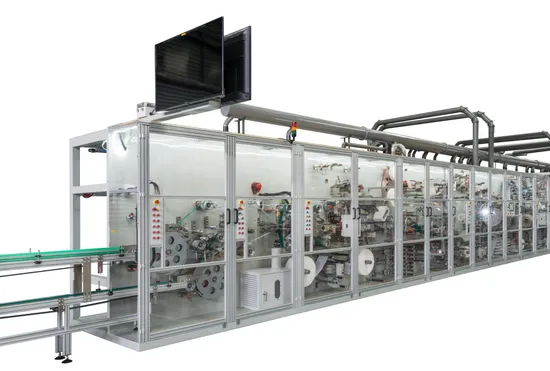

High-Performance Full Servo Sanitary Napkin Machine for Export
| US$700,000.00-2,500,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
CSG-PL2500
Real Running speed
＞800PCS/min
Automatic Grade
Automatic
Certification
CE, RoHS, ISO, CCC, SAA, C-tick, NOM, PSE, GOST, EMC, E-Mark, UL
Condition
New
After-sales Service
After Sales Services&Training
Pass Percentage
97%-100%
Color
Customized According to Requirements
Product Structure1
Fast-Easy Packing Sanitary Napkin
Product Structure2
Straight Packing Sanitary Napkin
Product Structure3
Individual Packing Sanitary Napkin
Power
180-330kw
Transport Package
Wooden Crates/Cases
Specification
26m*3.5m*3m
Trademark
YUHONG
Origin
China
HS Code
8441901090
Production Capacity
25 Set/Year
Product Description
Full Servo Sanitary Napkin Machine Product Description| CSG-SN1500EP Full Servo Sanitary Napkin Machine | |
| Product Stucture | |
| 1 | Fast-easy packing sanitary napkin |
| 2 | Straight packing sanitary napkin |
| 3 | Individual packing sanitary napkin |
| Main Technical Parameters | |
| 1 | Supply: 3 phase,380V,50Hz |
| 2 | Power:180-330KW(Excluding hot melt applicator and Compressor) |
| 3 | Production speed:600-1200pcs/min |
| 4 | Qualification:≥97% |
| 5 | Outside dimension(m):32 x 8.5 x 3 (L×W×H)( for reference) |
| Main Function and Features | |
| (I)Mechanical part | |
| 1 | Pulp SAP mixing product and laminating core product are compatible |
| 2 | High-density ultra-thin fluff core forming system,good absorbability |
| 3 | Core punching on-line and top sheet printing rule position function |
| 4 | With web guiding system |
| 5 | Machine with count function and directly connect with packing machine (option) |
| 6 | Packing machine(option) |
| 7 | Dust collection filter system (option) |
| 8 | Straight packing with fixtape separating function(option) |
| (II)Electric part | |
| 1 | Full servo motor drive and PLC control |
| 2 | One button for size change, quick and less waste |
| 3 | High-precision tension control system,active un-winding and auto-splicing system |
| 4 | i-MAS Intelligent equipment mangement and analysis system |
| 5 | Material auto-splicing end joint limit at 3m, and decrease material wastage |
| 6 | Material automatic inspect,broken and lost alarm system |
| 7 | Material picture ruled position application |
| 8 | Vision inspection system (option) |
| 9 | Elastic BTSR tension control system, single tension adjust(option) |
Sales Service
Company Profile
ZHEJIANG NEW YUHONG INTELLIGENT EQUIPMENT CO.,LTD
ZHEJIANG NEW YUHONG INTELLIGENT EQUIPMENT CO., LTD. has proudly paved the way in the design and manufacturing of top-tier disposable hygiene machines, including the High-Performance Full Servo Sanitary Napkin Machine, for almost three decades. Our unparalleled experience is showcased by our annual production of over 30 state-of-the-art production lines, delivering thousands of precision-engineered machines to satisfied customers globally. Our company enjoys an outstanding reputation, particularly across China, Southeast Asia, the Middle East, and Europe, distinguished by our commitment to innovation, quality, and customer satisfaction.
