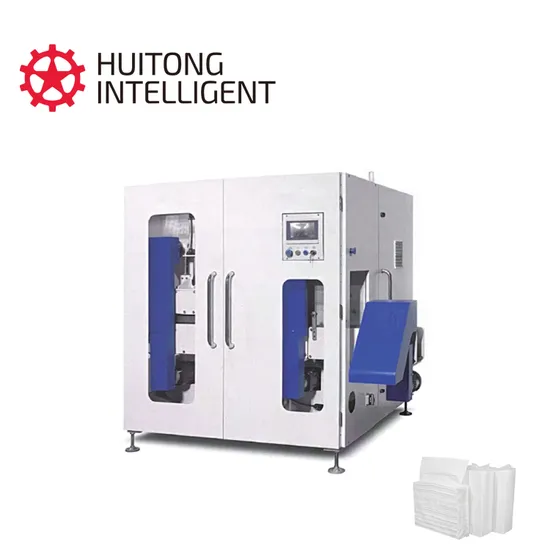

New-Style Customized Automatic Large Rotary Paper Cutter Machine
| US$8,000.00-58,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
HT-DHX01
Certification
CE, ISO 9001:2000
Condition
New
Control
Automatic
Embossing Type
Full-Embossing
Embossing Roller
Steel Roller
Tissue Packaging
Bag
Function
Cutting
Tissue Type
Pull Out
Weight
1000kg
Production Speed
50-300che/Min(Adjustable)
Power
8kw
Voltage
AC220V 50/60Hz
Transport Package
Wooden Cases
Specification
1510*1530*1590mm
Trademark
HUITONG
Origin
China
HS Code
8422400000
Production Capacity
50-360che/Min(Adjustable)
Product Description
High speed full servol log saw machine Product DescriptionENHANCED PRODUCT DESCRIPTION:
Revolutionary High-speed full servo log saw with Advanced Plastic Type Transfer System for Maximum Efficiency
Ready to embark on a lucrative venture in facial tissue or cotton towel production? Discover the essential machinery you need to succeed!
♦Application: Soft tissue, box tissue, cream tissue, ooreless roll, etc.
♦Features: The design of separating the cutter block from the paperpressing and conveying mechanism(creative)is adopted. Thetelescopic scrap dropping design is adopted for head and tairemovingThe whole machine adopts the design of full servo motioncontrol The large round knife canbe grinded till outside diameter of 4430mm.
♦Main parameters: Production speed maximum 360 cuts/minute.
♦Walue: There are no scraps in the machine, avoiding fire due tountimely clean-up. The simple operationfor production changingenhances production efficiency, The utlization rate of the largerouncknife is high. a
Explore a variety of machine types, whether full auto or semi auto. We warmly invite you to consult with us and explore innovative production solutions tailored to your market's popular products.
Sophisticated Functions The leftward and rightward staggered design is adopted forpaper feeding and discharging of the double-channel machine, sas toimprove the utilization rate of the large round knife. The rear facingtype machine can be designed.
Comprehensive Machine Information:
Key Technical Parameters:
| Control System | PLC program control,Servo drive,Touch screen operation | |||
| Feeding Mode | Same service drive, Synchronous location transmission with synchronous belt | |||
| Cut Off Mode | 360 ° continuous rotary motion | |||
| Cut off system | PLC program control,Touch screen operationLength(remove the head and tail) 15mm-25mm | |||
| Cutting precision | Cut off error <1mm | |||
| Knife Sharpening system | Automatic sharpening, touch screen setting parameters | |||
| Log Cutter Outer Dia. (mm) | Φ610mm(min.Φ400mm) |
| Compressed Air (mpa) | 0.5Mpa(bring your own) |
| Supply voltage | 380V/50Hz |
| Total Power (KW) | 8KW |
| Machine Size(mm) | 1510*1530*1590mm |
| Machine weight(KG) | 1000kg |
