Hongyou New Efficient Beach Cleaning Machine Qjc-160

Product Description

Product Description
Basic Info.

	QJC-160 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	PROJECT
1	Structure type	three-point suspension	12	Set the speed of the power output shaft	540r/min
2	Walking mode (wheel, track Type)	wheel	13	Matching suspension width	880mm
3	Tire/track model	Tire4.00-8	14	Blade material	Moving Blade
4	Number of tires/tracks	2	15	Digging depth adjustment range	65Mn
5	Tire/track spacing (center)	1860mm	16	Depth limiting mechanism type (depth limiting wheel, others)	0-250mm
6	Working size (L * W * H)	2400*2000*1150mm	17	Type of cleaning separation device (vibration Jane, others)	Central link
7	Shipping size (L * W * H)	2400*2000*850mm	18	Collection methods	Vibrating screen
8	Total weight	420kg(unweighed)	19	Volume of collection box	Collection box centralized collection
9	Working width	1600mm	20	Discharge method	0.3m³
10	Working performance	0.2ha/h	21	Screen diameter	Fluid pressure type
11	Matching power/machine horsepower	≥70HP	22	Blade material	22mm (Screen diameter can be customized)
Note: The values in the specification table are theoretical values, please refer to actual values.

Product Description
Beach Cleaner
- Diverse functions: Apart from picking up trash, it can also sieve sand and separate stones and shell fragments.
- Easy to operate: Boasting a user - friendly design, the operation interface is simple and intelligible. After a brief training, operators can skillfully master operations like driving and controlling cleaning functions.
- High adaptability: It can adapt to various beach terrains, and is capable of working on both gentle beaches and those with significant slope changes.

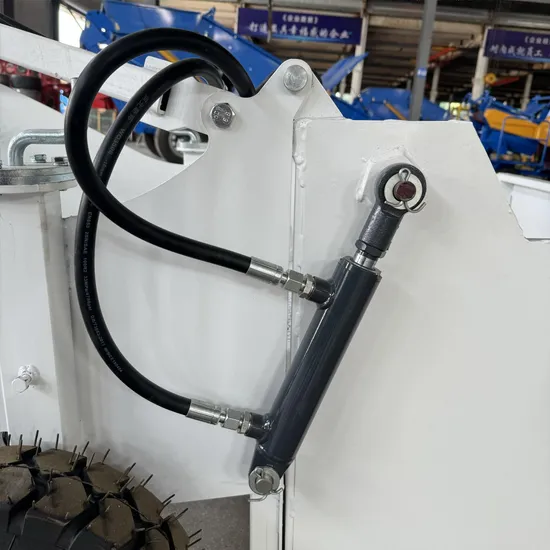

Detailed Photos
Certifications
Packaging & Shipping
Detailed PhotosProduct ParametersPackaging & Shipping

Company Profile
Company Profile
Dezhou Hongyou Agricultural Machinery Co., Ltd.
Dezhou Hongyou Agricultural Machinery Co., Ltd. is located in Ningjin County, Shandong Province, which is known as the "Agricultural Machinery City". Established in 2002, the company has 22 years of processing history and experience, and is a high-tech manufacturer focusing on agricultural machinery products for underground root crops.

Our main products include five series of more than 55 varieties, such as potato harvester machines, mulch film recovery machines, field stone picking machines, ridging and mulching machines, and seeding killer machines.

The company has passed the ISO9001-2008 quality system certification. We will always adhere to the business philosophy of "quality first, customer first", use advanced technology and professional products to make modest contributions to the modernization of agriculture. We sincerely invite partners from all over the country to join us in cooperation and jointly promote the modernization of agriculture, create a brilliant future for agricultural machinery. We warmly welcome both new and old.

We have an old factory area and a new factory area under construction for producing and processing machines. There are finished product stacking area, machine processing area and production workshop. Our Advantages
Customer visit factory
