Industrial Chain Stitch Shuttleless Multi Needle Quilting Machine Manufacturing China

Product Description

Product Description

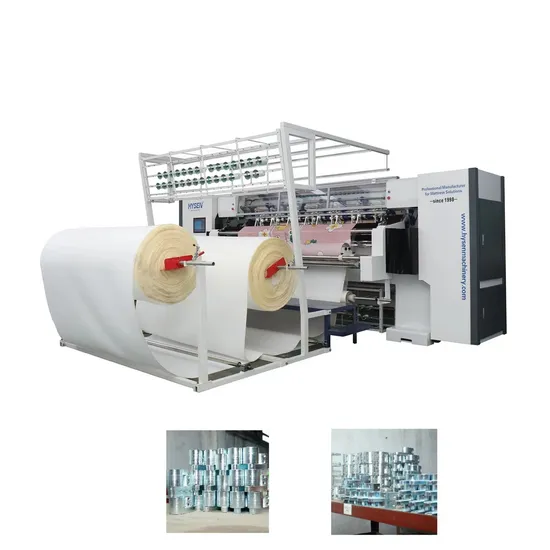

HSW3600(Add Protective Device) Computerized Shuttleless Multi-Needle Quilting Machine,The needle row adopts a needle bar frame structure, which eliminates the need for oil and avoids oil stains on the fabric. Moreover, this structure is stronger and not easy to be damaged, and the maintenance cost is low. Advanced surface thread breakage detection technology and automatic shutdown function when thread breakage occurs. The CAD drawing method is accurate in graphics, convenient and fast. High rigidity body, high machine operation, light vibration, low noise and no impact, regular refueling function. A new hooking button is added. Press this button and the machine will automatically stop at the hooking position to facilitate customers to install and debug the hook. A new high-position button is added. Press this button and the needle position will automatically stop at the highest position to facilitate needle threading.Added front and rear protective covers for safer operation.
Product Function
1.The needle row adopts a needle bar frame structure and without refueling to avoid greasy fabric. Moreover, the structure is solid and not easily damaged, low maintenance costs.
2.Advanced and practical up thread-break detection technology,auto-stop when thread-breaking.
3.Easy preparation of CAD drawings extremely precise.
4.Outs tanding featllres such as high vigidity high running speed low vibration and noise.
5.New hook line button, press this button the machine automatically stops at the hook line position to facilitate customers to install and debug the hooker.
6.New high position button, press this button the needle position automatically stops at the highest position for easy loading and threading.
7.Added front and rear protective covers for safer operation.

Product Parameters

Model	HSW3600
Dimension(l*w*h)	6000x1200x1700mm
Quilting Width	2450
Space Between Needle Rows	76.2
Space Between Needles	25.4
X-axis Movement Displacement	305
Quilting Thickness	≤30mm
Stitch Length	2‐8
Production Speed	60-230m/h
Model of Needle	24/180 23/160 22/140
Main Shaft Speed	400-1000RPM
Power	6KW
Volatge	380V/50H 220V/60H
Gross Weight	4100Kg

Product Details

If you want to know more detailed products, please click
https://hysenmachinery.en.made-in-china.com/product-list-1.html

The needle row adopts a needle bar frame structure and without refueling to avoid greasy fabric. Moreover, the structure is solid and not easily damaged, low maintenance costs.	Advanced and practical up thread-break detection technology,auto-stop when thread-breaking.
Easy preparation of CAD drawings extremely precise.	Outs tanding featllres such as high vigidity high running speed low vibration and noise.

Application Range:Mattress,Textiles,Clothing,Bed spreads,Bedding,Comforters and so on.
Our Advantages


Company Profile

Dongguan Hysen Machinery Co.,Ltd. specializes in manufacturing quilting machines, the company has standardized production plants,advanced production equipment,and a group of senior engineers and professional technical developers,forming a complete scientific research,design,production,sales and service system.We have more than 20+ years of production experience, we supply series of product and professional service to numbers of known companies.At present, the main products are quilting machine,automatic four-side hemming machine ,computerized panel cutting machine and tape edge machine , etc.Various products have passed the National Patent Office and CE certification.The products have been sold abroad to Asia, E-urope, America and Africa , etc.We hope we can build the good relationship with the customers all over the world.With cost-effective products and thoughtful warm service to exchange for trust and support, mutual benefit, create a win-win situation!

Packaging & Shipping

Certifications

FAQ
1.Q:Why Choose Our Company?
A:We have more than 20+ years of production experience, we supply series of product and professional service to numbers of known companies.
2.Q:How's the after-sale service?
A:We have a one-year warranty.And if you have any technical or other questions, you can always contact our engineers.
3.Q:ls the price offered changeable?
A. We offer reasonable price for every client, and the price is changeable according to purchasing amount.
4.Q: How about the quality?
A: The main subassembly and raw matetials are all supplied by large companies. Key parts are research and developed by our own staff. profesional assembly line work and strict quality test system can ensure your high quality reguirement.
5.Q:Are you a manufacturer or trading company?
A:We are a professional manufacturer holding our own intemational Trade Depalment,for that we can beter understand customers needs and ofer a reasonable price.
