Heavy Duty Large Spindle Bore Horizontal Manual Lathe Cw61100 for Metal Cutting

Product Description

Horizontal Heavy Duty Lathe Machine CW61100 Main Features:
This series lathes are suitable for turning internal and external cylindrical surfaces, conical surfaces,other rotating surfaces,end surfaces,and can also process a variety of commonly used threads, such as metric, inch, modulus, diameter thread, as well as drilling, reaming, tapping, Broaching wirgrooves and other work it can process materials such as steel, cast iron and non-ferrous metals. When the machine tool is finished, the roundness error is not greater than 0.01mm,the cylindricity error is not greater than 0.04mm in the measurement length of 300mm; the surface roughness (Ra) is not greater than 25um.Main structural features:
1.The overall high-torsion horizontal bed is made of high-quality cast iron. The guide rail surface is processed by induction hardening precision, and the guide rail surface width is 600mm;
2.The guide rail pair composed of PTFE guide rail soft belt is wear-resistant, vibration-absorbing, and has good accuracy retention;
3.The main shaft adopts a three-support structure, which has high rigidity and high precision, and can be strongly cut. The main shaft through hole is a large through hole of 100mm:
4.The 18-levelwide speed range can choose a more reasonable speed;
5. Can turn metric and imperial threads directly;
6.The slide box has a fast moving mechanism.

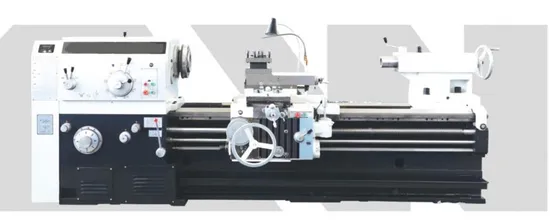

MACHINE IMAGES:
SPECIFICATIONS:

Model No.
Item No.	CW61100
Specifications
Swing over bed	1000 mm
Swing over carriage	680 mm
Max.length of workpiece	1500 2000 3000 4000 5000 6000 mm
Max.turning length	1350 1850 2850 3850 4850 5850 mm
Pan of guideway	600 mm
Spindle
Spindle nose	C11
Spindle bore	100 mm
Taper hole of spindle	1:20
Range of spindle speeds	Forward rotation: 6~750 r/min Reverse rotation: 10~775 r/min
No.of spindle speeds	18/6
Feed motion
Longitudinal and cross	64;0.1-24.32 r/min
Cross/long longitudinal feed	1/2
Screw pitch of leadscrew	12 mm
No. and range of metric thread	50;1-240 mm
No. and range of inch thread	26;14-1
No. and range of module thread	53;0.5-120 mm
No. and range of dia. thread	24;28-1
Rapid traverse speed	4000 mm
Distance of spindle and tool plane	33 mm
Tool post&Tailstock
Tool post swing range	±90°
Max. travel of cross slide	500 mm
Max. travel of top slide	200 mm
Section of tool shank
Dia./Travel of tailstock	100/250 mm
Taper hole of tailstock quill	Mores 6
Other
Main motor power	11kw
Length	3670 3985 5165 6220 7400 8260 mm
Width/Height	1730/1450 mm
