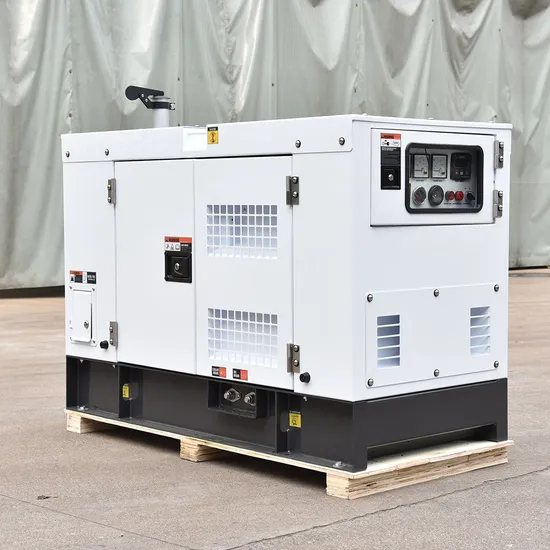

10kw Super Silent Diesel Generator Standby and Home Use

Product Description

Standard features

Heavy duty, 4-cycle, variable speed fan, diesel engine provides maximum reliability.

Brushless alternator reduces service and maintenance requirements. Class H protection. • Open delta alternator design provides virtually unlimited excitation for maximum motor starting capability. • Automatic voltage regulator (AVR) provides precise regulation.

Electronic governor system maintains frequency to ±0.25%.

Full load acceptance of standby nameplate rating in one step

Soundproof, weather resistant, steel housing provides operation at 68dB (A) at 7meters. Fully lockable enclosure allows safety operation. Outdoor operation available.

Internal fuel tank with direct observing glass, and fuel level meter display on control panel.

E-coat and powder coat paint provides durability and weather protection.

Digital engine gauges including oil pressure, water temperature, battery volts, engine speed, and fuel level.

Analog generator instrumentation including Ampere meter, Voltage meter, frequency meter, ammeter phase selector switch, voltmeter phase selector switch. Analog generator instrumentation and regulator ad justment.

Deepsea/Comap professional generator controller • High visibility LCD display with heated screen and alphanumeric readout. • IP65 Protection standard, operational temperature range of 40ºC to 85ºC. • Modbus interface for gauge panel and expansion options. • DPF cleaningcycle indication. • Log record for inspection

Automatic safety shutdown system monitors the water temperature,engine oil pressure, low coolant, low DEF, overspeed, and overcrank. Warning lights indicate abnormal conditions.

Fuel/water separator. Removes condensation from fuel for extended engine life.

Emergency stop switch - when manually activated, shuts down in any emergency.

Product Description

Generator Specifications
Model	Revolvingfield, self-ventilated weatherproof
ArmatureConnection	StarwithNeutral
Phase	1
StandbyOutput	10KW(10KVA)
PrimeOutput	8KW(8 KVA)
PowerFactor	1.0
VoltageRegulation(Noloadtofullload)	±0.5%
GeneratorRPM	1800
Frequency	60 Hz
No.ofPoles	4
Excitation	BrushlesswithAVR
FrequencyRegulation:NoLoadtoFullLoad	Isochronousunder varying loadsfromnoload to 100% rated load
FrequencyRegulation: SteadyState	0.25% o f mean value for constantloadsfromnoload to full load.
Insulation	ClassH
SoundLeveldB(A) Fullloadat7M	60
Engine Specifications
Make/ Model	LD/KM385BD
Emissions	/
Starting System	Electrical start
Design	3cylinder ,4-cycle, water cooled,directinjection, naturalintake
Displacement	1.5 liters
No. cylinders	3
Bore*Stroke	85*90mm
Gross Engine Power Output	17.7hp (13.2 kW)
Compression Ratio	23:1
Engine Speed	1800 rpm
OverspeedLimit	2070 rpm
OilCapacity	2.35 gallons(8.9 liters)
CoolantCapacity	1.46 gallons(5.5 liters)
Battery	12V60Ahx1
Alternator Specifications
AlternatorBrand	KWISE
AlternatorModel	S164G88B2
Excitation	Brushless,Self-Excitedsystem
Capacity(KVA)	10kva
Power(KW)	10kw
Efficiency	80%
Insullationclass	ClassH
Protectionclass	Ip23
Steadystatevoltageregulation	±1%
Voltage control	AVR

Company Profile
Zhejiang Universal Machinery Co.,Ltd. since 2007 specialized in production and slaes of Diesel generators, Super-silent generator,Reefer container generator, Solar light tower,Mobile generator,light tower, Air compressor, and other the development of new products.
Our factory locaed in Quzhou city, west of Zhejiang provice in China, Factory occupies over sixteen thousand square meters and has a beautiful, clean and tidy environment. "strict management, brave innovation, customer satisfaction and strive for the brand." is our manufacturing principle. Through the improvement of the production process, we have accumulated rich experience in design,manufacture and debugging. We used the most advanced full-automatic laser cutting machine and automatic bending machine to improve production level.High-quality raw materials, advanced technology and equipment as well as good management enable us to provide customers with good-quality products and international-level service.Ensuring reliable and steady performance of our products.
We set branch in DUBAI,for spare parts supply and after sales.Till nowadays we developed agent in main countries all over the world like USA Australia,France,Indinesia,Palestine,Nigeria,Venezuelia,Philppines,Malasia,Singapore ect.
Our products are sold all over the world. We offering UNIV power system equipment and high-quality sevice to over 100 countries.
Production process Full-automatic laser cutting machine
High precision equipments have the ability to ensure the consistency of product high quality, The canopy is formed by cutting and bending using 2 mm cold-rolled sheets from big company in China, without burr, every part of canopy smooth and beautiful, artwork standards.
Automatic bending machine Advanced system that achieves precise (0.03mm) and economical bending results even in lot sizes of less than ten. All related sheet-mental parts can be treated self-directed.Ensure the efficiency and pertinency. Setting complete manufacturing system to ensure batch consistency of the quality.
Welding You know good welding technology not only affects the aesthetic degree of product, but also decide the quality of product, we use 3 types welding equipment: electrowelding, argon arc welding and GMAW-MIG for different parts connect.
Polishing We pay attention to every details, after welding and poslish every parts, Its function is to clear the surface of the surface of
burr, rust, oil, dust, and remove coarse particles and impurities on the coating surface and obtain flat surfaces, so when powder coating canopy for get stronger adsorption force.
Plastic coating Powder Canopy surface by the phosphate treatment using, oil and rust removing, using special plastic powder electrostatic spraying,coating adhesion, strong, bright color, Adopting outdoor use plastic coating powder, with accurate color,beautiful appearance,and durable on rustproof performance, also have specialized equipment to protect environment for longer development in the future.
Assemble Good management and operation to provide a shorter delivery time.
