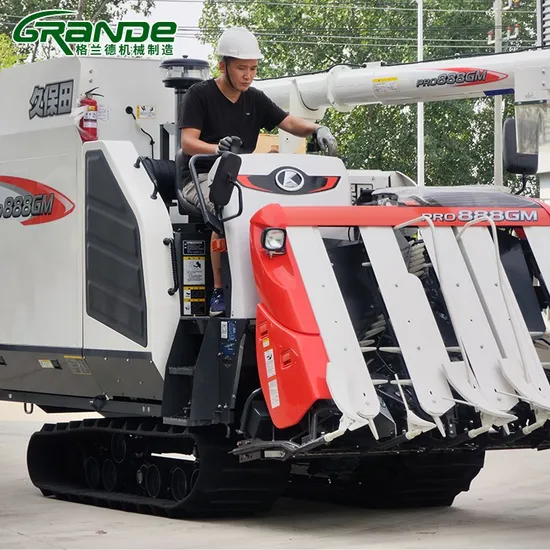

1720 Cutting Width Kubota Half-Feeding Combine Harvester

Product Description

Product Description
Detailed Photos

Product Parameters

KUBOTA 4LBZ-172B(PRO888GM)
Model				4LBZ-172B(PRO888GM)
Dimensions	Length (mm) (transportation/working)			4615/4615
	Width (mm) (transportation/working)			2100/2385
	Height(mm)(transportation/working)			2415/2415
Structure weight (kg) / Working weight (kg)				3350/3477
Engine	Model			V3800-DI-T-ES12
	Structure			Vertical water-cooled 4-cylinder turbo diesel engine
	Total displacement (L)			3.769
	Calibration power (kW)			66.1
	Calibration speed (r/min)			2400
	Fuel			High-quality diesel (0#))
	Fuel tank capacity (L)			73
Walking parts	Rubber track	Ground length(mm)		1670
		Gauge (mm)		1155
		Specifications [pitch (mm) × number of sections (section) × width (mm)]		90×52×500
		Ground pressure (kPa)		19.7
	Transmission type			Mechanical transmission + hydraulic stepless transmission (HST)
	Gear shift			Stepless forward and stepless backward (auxiliary transmission with 3 gears each)
	Theoretical operating speed (km/h)		Forward	Low speed: 0~3.82, Standard: 0~5.40, Walking: 0~7.3434
			Rear
Header	Number of harvested rows (rows)			5
	Cutting Width(mm)			1720
	Threshing depth adjustment method			Automatic / Manual
	Adapt to crop height range (mm)			650~1300
	Fuhe gears			Auxiliary transmission 3rd gear synchronous + Fuhe 3rd stage
Threshing parts	Threshing method			Bottom threshing, single cylinder, axial flow
	Threshing	Dimensions (outer diameter x length) (mm)		Φ424×1000
	Roller	Speed (r/min)		505
Grain Processing parts	Capacity (L)			1500
	Grain unloading barrel	Grain discharge port rotation range (degrees) and rotation method		255 [left rotation] Electric motor
		Grain discharge port lifting range (degree) and lifting method		0[Horizontal]~47.6·Hydraulic operation
		Grain unloading height range of unloading grain (mm)		2000~4900
		(Working)
		Grain unloading mouth extension distance range (mm)		2700~3900
		(Working)
Straw Processing parts	Stem chopper type			Hanging type (cutter, cutting length: 60mm)
Working hour productivity (hm²/h)				0.27~0.53(In the case of wheat and rice in standing dry fields)

Packaging & Shipping
Company Profile
Jiangsu Grande Machinery Manufacturing Co.; Ltd. focuses on paddy field stubble tillage rotary tiller and related implements. currently our products have been sold to Africa, South America, Europe, etc. Our company has 30 employees, 1000 square meters of office area and 7000 square meters of warehouse, Adhering to the principle of customer first, in order to supply better technical support and after-sales service, the company had established a technical department and after-sales service department in 2018.
Jiangsu Grande Machinery Manufacturing Co.; Ltd. to provide customers with professional paddy field operation machinery products.
FAQ
FAQ
1. What's the MOQ?
MOQ is 1 20GP, around 10 sets.
2. What's the after sales?
Our products' warranty is for 12 months. after that, we can still supply thel spare parts.
3. What's your lead time?
usually within 20 work days.
4. Are you interested in dealership with local company?
Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more machines in local market and supply better service.
5. What's your Payment terms?
30% payment in advance by TT, 70% balance before delivery.
