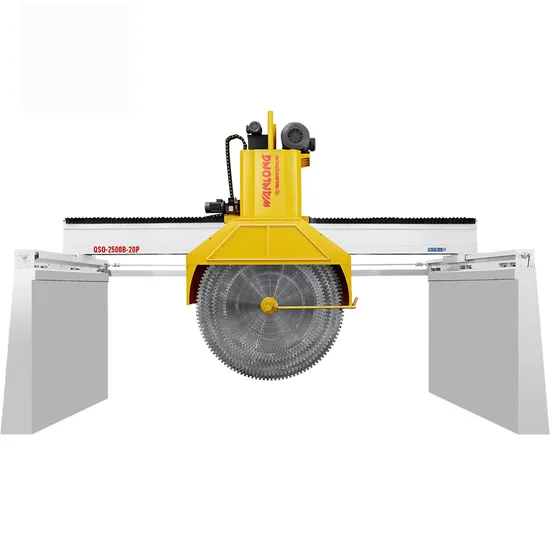

Wanlong Qsq-2500b Granite Slab Stone Cutter Machine Bridge Block Cutting Machine

Product Description

Wanlong QSQ-2500A granite slab stone cutter machine bridge block cutting machine:
The machine adopts PLC programmable controller and Human Machine Interaction control, supplemented by ultra-high-precision rotary encoder for segmentation.The left and right feeding is controlled by inverter.The cutting method, cutting pieces, cutting thickness, feeding depth and feeding speed can be set arbi­trarily according to different stone materials. It is using hydraulic lifting for up and down. Combined with chrome-plated guide rod and wear-resistant guide sleeve, so the matching gap is small, and it' s wear-resistant and beautiful.In addition, the multi-layer seal is designed in the guide sleeve, which is waterproof, dust-proof and An­ti-oil-leakage, to improve the service life. The forward & backward slicing are driven by high-precision screw nuts. Automatic slicing, and key parts are using imported high-quality parts.The blocks are placed directly on the ground, which can save the trolley and its maintenance costs; there­fore, it has the advantages of high cutting efficiency, high slicing accuracy, and consistent thickness of the cut slabs, good flatness, high stability, and convenient operation. It is especially suitable for cutting high value granite and marble blocks.
Technical Parameter

Model	QSQ-2200	QSQ-2500B	QSQ-3000
Max. blade diameter/mm	2200	2500	3000
Max. cutting length/mm	3200	3800	2500
Max. cutting width/mm	1800	1800	1800
Max. cutting height/mm	950	1400	1350
Max. No. of blades	9	12-14	1
Main motor power/kw	55	55	55
Power requirement	3 Phs 380V 50Hz(other is available)
Overall dimension (LxWxH)/mm	7300X3800X5500	8000X4000X5600	7300X3800X6100
Total Weight/kg	10,000	16,000	12,000
