with waste rewind shaft Slitting machine for Brown Paper /tape/film

Product Description

Product Description

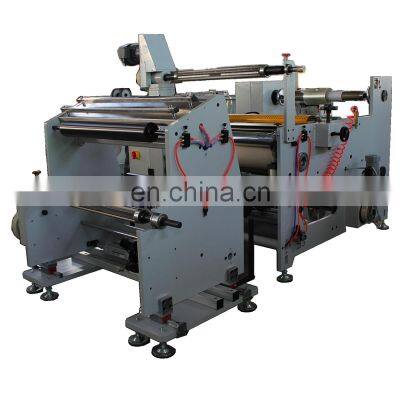

Laminating Slitting machine for Brown Paper /tape/film
Sample :

Functional characteristics:
This machine enjoys photoelectric track and rectification system ,and the magnetic powder cluth is dopted to control the feeding and receiveing tension .
Main machine is of frequency conversion speed regulation ,and the rubber covered roller is controlled by the cylinder .Lamination and slitting can be done at the time ,and also can be done solely .Enjlying characteristics such as fast slitting speed ,ease of opertion and maintenance.
COPE APPLICABLE :
Apply to the longitudinal cutting and all kinds of industrial tape ,electronic adhesive tape ,pt,compostite film paper ,protective film and other composite materials ,electronic material processing is ,printing ,packing ,food ,pharmaceutical and other industries essential equipment.

Model	1300 multifunction slitting machine
Max Feeding Width ( mm )	800
Main Engineer Power ( KW )	6
Speed (M/Min. )	100
Size ( mm )	2400*2000*1300
Weight (kg)	1200
unwinding diameter ( mm )	1100mm
Rewinding diameter ( mm )	450
precision ( mm )	±0.10
Power	1 phase 220V

FEEDING MACHINE	215X106X122 CM
MAIN MACHINE	215X160X147 CM
	total about 7.8CBM
Gross weight	1500 KG
Net weight	1300 KG
