US$45,000.00-46,800.00
|
1 Set
(MOQ)
|
Basic Info.
Making Method of Parison
Extrusion-Blow Molding
Computerized
Computerized
Certification
CE, ISO9001:2008
Transport Package
Film Packing
Production Capacity
7 Sets/Month
Product Description
Product Description

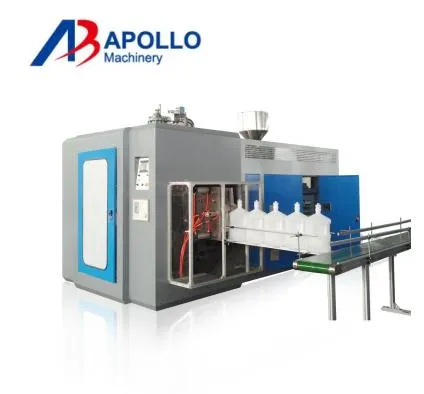

Automatic extrusion blow molding machine:
ABLB90 blow molding machine is suitable for producing all kinds of plastic containers and bottles in all shapes from 5L to 18L. Adopt advanced PLC control system and a simple panel. PLC control system has counting function and time control precision to 0.1 second. Special fan design for the cooling system in the heating channel to keep the oven with constant temperature and ensure the plastic can be heated evenly.
Perfect design, guaranteed quality with economic investment.
Easy to operate and maintain, operated by one person, no need professional training.
If you need further info., don't hesitate to contact us.
Main technical parameter
Name | Units | ABLB90I |
Max.product volume | L | 15 |
Dry cycle | PC/H | 800 |
Screw diameter | MM | 90 |
Screw L/D ratio | L/D | 24 |
Screw drive power | KW | 37 |
Screw heating capacity | KW | 6 |
No. of heating zone | ZONE | 4 |
Output of HDPE | KG/H | 130 |
Oil pump drive power | KW | 11 |
Clamping force | KN | 120 |
Max.size of mold | MM | 530×550 |
Template size | MM | 550×550 |
Mold stroke | MM | 300-800 |
Max. die diameter | MM | 200 |
Blowing pressure | MPA | 0.6 |
Air volume | M3/MIN | 0.7 |
Cooling water pressure | MPA | 0.3 |
Water consumption | L/MIN | 70 |
Size of machine | L×W×H | 4.3×2.2×3.0 |
Weight of machine | TON | 8 |
Company Profile
Certifications
Exhibition
Customer photo
FAQ
1. Can the machine customized only for my products?Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request. 2. How about the molds ?APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional. 3. What is the business item for this project ?a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .b. Port of Loading: SHANGHAI, CHINA.c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.d. Container needed: One 20GP container. 4. How is APOLLO after-sales service?a. InspectionBefore delivery, APOLLO takes responsibility to finish the machine in time and send the righ t samples to clients for approval. Clients also are welcome to APOLLO factory to inspect the testing of machine, so that the provided machine could be safely and smoothly put into operation once reach the client`s factory.b. Debugging InstructionAPOLLO takes responsibility to have debugging overseas, and client abroad please sends in vitation forward of time to engineer of APOLLO , provides the engineer with round-trip tickets, accommodation, food, vehicle and USD80/Day/Person as salary; Before Tonva`s engineers arrive at the buyer`s factory, the buyer must make sure that all of equipment are put in the correct position in their factory, the raw material, power and water supply must be ready in the factory.C. User TrainingAPOLLO takes responsibility to indoctrinate technical training in both APOLLO and clients' factory to the users, so that they could understand the machine features and could operate the machine by themselves. 5. What is the warranty period?a. APOLLO machine Main parts is one year warranty with a lifelong maintenance.b. Mould within one year or 5 millions warranty.
