Euro Control Stanard Customized Food Pallets Palletising End of Line Pallet De-Stacker

Product Description

JOINSUN Palletizing System Online Empty Pallet Dispenser with chain conveyor for food industry
A pallet dispenser is a machine designed to automatically load, store and dispense pallets. It can hold a large quantity of pallets, usually stacked vertically, and can be loaded with different types and sizes of pallets.
There are several different types of pallet dispenser, but they all work to achieve the same goal: reducing manual handling and improving the flow of the pallets in a warehouse or distrution center. By automating the pallet hanlding process, pallet dispensers can save time, reduce labor costs, and increse efficiency.
JOINSUN Manufacturing engineers, designs, manufactures conveyor and conveyor systems for Original Equipment Manufacturers (OEMs), System Integrators (SIs) and Distributors. Product expertise includes the following: Chain Driven Live Roller (CDLR), Gravity Conveyor, Turntables, Chain Transfers, Zero Pressure Accumulation (MZPA), Transfer Cars, Shuttle Cars, Drag Chain Conveyor, Pallet Stackers/Dispensers, Rollers, Lift and Rotate, 24VDC Motorized Driven Roller Conveyor (MDR), Pallet Handling, Pallet Handling Systems.
Specification for pallet dispenser

Model	KP-GZ01-1
Suitable pallet types	Wooden or plastic pallets
Suitable pallet size	1200*1000mm
Dispense speed	2~5 pallet/min
Magazine	10-12pallets
Frame material	Carbon Steel, surface painting
Linear guide rail	Hiwin or same class
C profile guide	3t/6t steel sheet bending, surface painting
Air source	0.6-0.8Mpa
Cylinder	without
Conveyor feeding height	500-600 +/-50mm depends on per project

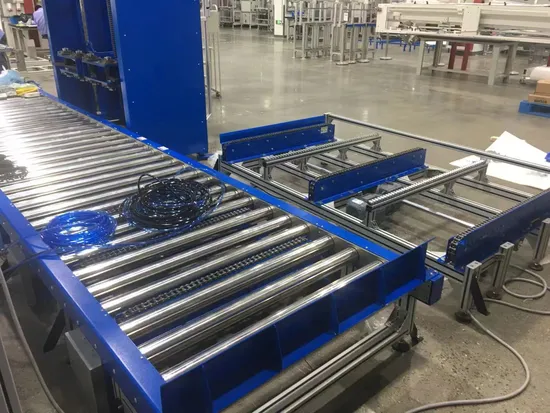

Specification for pallet roller conveyor

Conveyor width*height	According to the drawing
Roller diameter	80mm Inte rroll
Roller spacing	125mm
Roller material	Galvanized
Motor Brand	S E W
Conveyor specification	Details see the drawing
Frame material	Carbon Steel, powder coating Cream white color
Loading weight	800kg per pallet
Speed	10-15m/min
Capacity	180 pallets /hour

Welcome to contact us for the delivery time, proposal, customer cases and quote!
