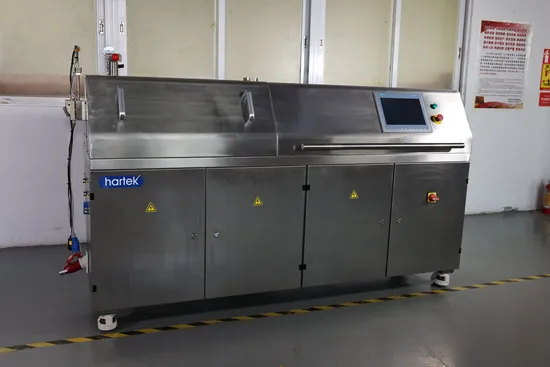

Pharmaceutical-Grade Hot Melt Twin Screw Extruder, Lab-Scale, Stainless Steel Structure, CE Certified, for Drug Blending and Bioplastic Developme

Product Description

Application range of hot melt extruder:
* General plastics, engineering plastics, elastomers and other materials mixing, mixing extrusion granulation
* Blending modification and reactive extrusion of composite materials
* High efficiency mixing of polymer alloy
* Polymer filling enhanced modification
Performance characteristics of hot melt extruder:
* The extruder is driven by brand variable frequency motor, stable plasticizing and good consistency;
* Building block barrel and screw structure, convenient and quick process adjustment;
* Quick-opening head and net changer, fast cleaning and net changing;
* Choose the brand (Dynisco) melt pressure and temperature sensor, the test data is precise;
* Computer-based measurement and control system and friendly operation interface, easy to operate, more powerful;
* Emergency shutdown device and various safety protection to ensure the safety of operators;
* With the corresponding auxiliary machine, it can be combined into granulation, calendering, casting film and other experimental lines.
* High intelligence, easy to operate.
Technical parameters of hot melt extruder:

Model	HTGD-16	HTGD-20
Screw diameter	16mm	21.7mm
Length-diameter ratio	40:1	40:1
Motor power	2kW	5.5kW
Speed	600rpm	600rpm
Max Temperature	350ºC(optional 450ºC)	350ºC(optional 450ºC)
Temperature control accuracy	±1ºC	±1ºC
Melt pressure measurement range	0~35mpa	0~35mpa
Output	0.1~5kg/h	0.5~20kg/h
Weight	268kg	719kg
Dimensions	1382×690×1230mm	2375×690×1660mm

FAQ:
1.Where is our factory?
Hartek: Our factory is located in guangzhou city, guangdong province, China, about one hour by car from guangzhou baiyun airport . All our clients from home or abroad, are warmly welcome to visit us!
2.Why choose us?
Hartek:(1)We have complete system of designing of our equipment.
(2)We can provide the perfect management solutions.
(3)We master the core techonology in this extruder industry.
3.What's the payment method?
Hartek: We accept by T/T ,Western Union,Paypal. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment.
4.Can we see the running machine in your factory?
Hartek: Yes.Before making your decision buying the equipment or not,you can bring some material here to test-run the equipment.
5.How long of the warranty time?
Hartek:We offer you high quality machines with 12 months guarantee.
6.What is your packaging?
Hartek: After doing the anti-rust treatment, wrap the plastic film around the machine and then fix the machine on the standared export wooden boxes.
7.How can we check the machines before delivery?
Hartek:We can provide online checking when testing the machine on site. We will take and prepare detailed testing videos for your checking before the delivery.
