50L Crystallization Separation Multifunctional Jacketed PTFE Filter Reactor

Product Description

Product Description
TOPTION glass nutsche filter is a professional customized type, glass reactor with ultrasonic emulsification & nutsche filtration function.
The slurry is transferred into the filter reactor. The solid content in the slurry is held by the filter cloth under the reactor body, while the filtrate runs away from the outlet valve in the bottom plate and goes into the right side collection flask.

Ultrasonic probes can help to mix the material with better effect.

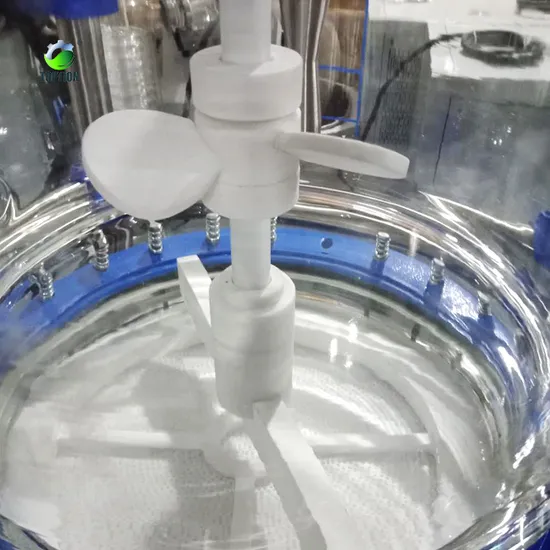

The stirrer inside the reactor can mix material and improve efficiency too.

The cake after filtration is removed easily from the cover or bottom by lowering and opening the glass filter vessel, which is fixed to the lifting device. The lifting device is also used to lower the bottom for accessing the filter cloth for cleaning and exchange.
Product Parameters

1. Glass reactor with the ultrasonic device (ultrasonic power 2500W)---- can emulsify the sample with stirring to make the sample mix more fully

2. Filtration at the bottom of the glass reactor---- After the emulsification in the first step is completed, it can be filtered to keep the impurities on the filter plate, and the required liquid can be placed in the collection bottle on the right to better separate the materials.

3. The temperature control on the left is mainly to provide a cooling or heating source to the glass reactor body, which can be set according to the customer's temperature process.

4. The bottom of the glass reactor is designed with an electric lifting device---the customer has finished the experiment, which is convenient for the customer to disassemble the cleaning filter plate.

5. The rightmost cold trap + collection bottle - the purpose of this design is mainly to recover organic reagents and protect the vacuum pump.

Our Advantages
1. Nutsche filter whole set is made of GG17 high borosilicate glass with good chemical and physical properties.2. Use PTFE composite seal, it can maintain a high vacuum degree.3. Use an efficient condenser to ensure a high recovery rate.4. It can be added with tap water to quickly take away reaction heat.
5. Discharged material has a flanged opening and PTFE valve, without a dead angle inside the container, it can be demounted to facilitate the discharge of solid materials.
6. Digital mixing motor, frequency conversion control, matched with a torque increasing of reducer.
7. CE certification, ISO approved reliable quality glass nutsche filter manufacturer, support professional customize
