China 6 Head Computerized Embroidery Machine with Automatic Design Software

Product Description

China Commercial 6 Head Computerized Hat Embroidery Machine with Automatic Design Software
HIgh speed 6 Head 9/12/15 Needle Computerized Embroidery Machine for shirts and cap and towel and 3d etc. it can do 6 pcs garment or cap at once time.
Speed as 850-1000 RPM.
Flat farbic embrodiery area as 400*450 mm
Cap embroidery area as 60*160 mm; if you want more large area, please let me know before order.
Garment hoop size 9*9cm/12*12cm/15*15cm/19*19cm/29*29cm
I. Machine Parameter

Brand	WONYO	Screen	12" touch screen
HS code	84479020	Languish	16 kinds
Original	China	Memory	20, 000, 000 stitches, 200 designs
Head	6	On board lettering	Yes
Colors	9/12/15	Format	Dst
Model	5 models	Design software	Included
Max EMB	400*500 mm	Auto-motor trimmer	Yes
Computer	Topwisdom/Dahao	Thread broken detect	yes
Software	Recommend Isew/Wilcom/Tajima, Any software that can make DST format is ok.	Emergency stop key	yes
Speed	850spm/ 1000 SPM	Bobbin winder machine	included
Applications	Cap; garment; flat; towel...	Oil tank	yes
Main motor	Servo	Pattern preview	yes
X. Y motors	Stepper	Photo embroidery	No
Rotary hook	Japan Koban	Pattern import	Usb and computer
Needle	Groz-Beckert No. 11	100 Dot key	yes
Power	1200 w	Warranty	2 years
Voltage	All support; 50/60Hz; 110-250V	Package size	3.7*1.15*1.72m; 1200kg

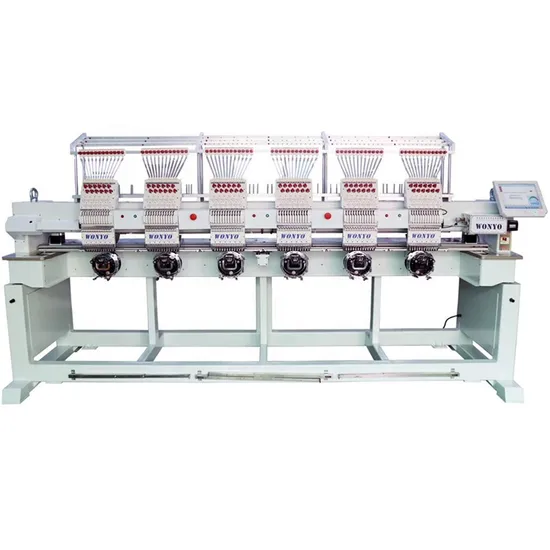

II. Machine picture
#Model: WY906CS; 850spm
#Model: WY1206CS; 850spm
#Model: WY906CH; 1000spm
#Model: WY1206CH; 1000spm
#Model: WY1506CH; 1000spm
Package
III. Machine accessoies
No matter which model 6 head embroidery machine, they are with same accessioes as bellow:

(1) Hoops	A. 2 sets x Round Hoop 9 cm per head B. 2 sets x Round Hoop 12 cm per head C. 2 sets x Round Hoop 15 cm per head D. 2 sets x Round Hoop 19 cm per head E. 1 sets x Round Hoop 29 cm per head F. 1 sets x Flat hoop
(2)Cap attachment	A. 1 set cap station B. 2 pcs cap ring per head C. 1 set cap driver per head
(3)Others	A. 1 big roll embroidery bottom thread (1.5kg) B. 1 set x Operation manual C. 1 box x Tool kits and spare parts D. 1 set x Bobbin winder E. 1 set x U disk (hundreds pattern can inside if you need) etc

VI. All 5 models 6 head embroidery machine with same function.
V.Machine delivery
Packaging: Standard Vacuum wooden case or as customer requested
Delivery Term: Production takes around 20 days, ship within 7-10 days.
Payment Term: T/T 30% down payment before production, all balance cleared before shipping
Minimum order: 1 set
Production scale: 500sets per year

Package
Package size	3750*1130*1720mm
Weight	1200KG
Package details	The normal package is wooden box(Size: L*W*H). But it's ok to pack it according to customers special request

Testing and inspection The machine will be fully assembled and tested in our factory to the standard test procedures. If the customer has arranged any special test materials or test procedures these will be carried out the same time. Upon approval, the machine will be packed and shipped.
Installation Staff in Shenzhen factory will install the machine and a training period for the operator and maintenance person will be provided after the machine being set up in Shenzhen Factory. Our service Our exhibition 1. Free training in our factory.
2. OEM order service and ODM oder service can be offered.
3. Spare parts service available.
4. Our engineers are available to serve overseas.
5.2 years warranty for the whole machine and 3 years warranty free upgarde and repair for the computer system.
