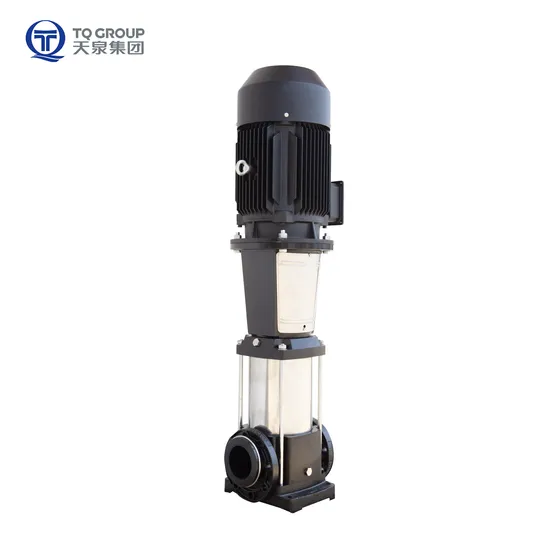

64t Vertical Multi-Stage Stainless Steel Centrifugal Pump Water Pump 10HP/15HP/20HP/25HP/30HP/40HP/50HP/60HP Multistage Pump
| US$500.00-5,000.00 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
TDL(F)64
Max.Head
110m-150m
Max.Capacity
64 M³/H
Driving Type
Motor
Material
Stainless Steel
Structure
Multistage Pump
Assembly
Pipeline Pump
Power
Electric
Type
Non-Self Priming Pump
Application
Clarified Water Pump
Theory
Centrifugal Pump
Max Ambient Temperature
+40
Max Altitude
up to 1000m
Transport Package
Wooden Case
Trademark
Tianquan
Origin
China
HS Code
8413709910
Packaging & Delivery
Package Size
50.00cm * 60.00cm * 80.00cm
Package Gross Weight
100.000kg
Product Description
Product DescriptionProduct Advantage
Hydraulic Coverage
Product Structural Drawing
Product Parameters
| Model | Motor Power (kW) | Flow (m3/h) | 30 | 40 | 50 | 60 | 64 | 70 | 80 | 85 | |
| TDL64 TDLF64 | -1/1 | 4 | Head (m) | 17.5 | 16.5 | 15.5 | 14 | 13 | 11.5 | 9 | 7 |
| -1 | 5.5 | 25 | 23.5 | 22.5 | 20.5 | 19.5 | 18.5 | 16 | 15 | ||
| -2/2 | 7.5 | 36.5 | 35 | 32.5 | 29.5 | 27.5 | 24.5 | 18.5 | 15 | ||
| -2/1 | 11 | 44.5 | 42.5 | 39.5 | 36 | 34.5 | 31.5 | 26 | 23 | ||
| -2 | 11 | 52 | 49.5 | 46.5 | 43 | 41.5 | 38.5 | 33.5 | 31 | ||
| -3/2 | 15 | 64 | 61 | 57 | 52 | 49.5 | 45 | 36.5 | 31 | ||
| -3/1 | 15 | 72 | 69 | 64 | 59 | 56 | 52 | 44 | 39.5 | ||
| -3 | 18.5 | 80 | 76 | 71 | 66 | 63 | 59 | 52 | 47.5 | ||
| -4/2 | 18.5 | 92 | 88 | 82 | 75 | 71 | 65 | 54 | 47.5 | ||
| -4/1 | 22 | 100 | 95 | 89 | 82 | 78 | 73 | 62 | 56 | ||
| -4 | 22 | 107 | 102 | 96 | 89 | 85 | 80 | 70 | 64 | ||
| -5/2 | 30 | 119 | 114 | 107 | 97 | 93 | 86 | 72 | 64 | ||
| -5/1 | 30 | 127 | 121 | 114 | 104 | 100 | 93 | 80 | 72 | ||
| -5 | 30 | 135 | 129 | 121 | 112 | 107 | 100 | 88 | 80 | ||
| -6/2 | 30 | 147 | 140 | 131 | 120 | 115 | 106 | 90 | 80 | ||
| -6/1 | 37 | 155 | 147 | 139 | 127 | 122 | 114 | 98 | 89 | ||
| -6 | 37 | 163 | 155 | 146 | 134 | 129 | 112 | 106 | 97 | ||
| -7/2 | 37 | 174 | 166 | 156 | 143 | 137 | 127 | 108 | 97 | ||
| -7/1 | 37 | 182 | 174 | 163 | 150 | 144 | 134 | 116 | 105 | ||
| -7 | 45 | 190 | 181 | 171 | 157 | 151 | 142 | 124 | 113 | ||
| -8/2 | 45 | 202 | 192 | 181 | 166 | 159 | 147 | 126 | 113 | ||
| -8/1 | 45 | 210 | 200 | 188 | 173 | 166 | 155 | 134 | 121 | ||
