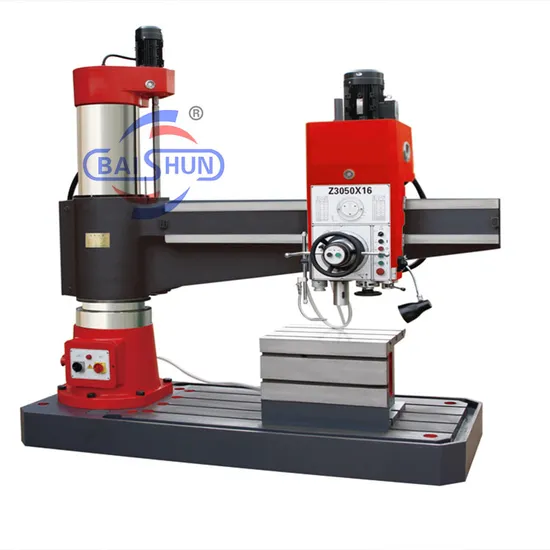

Industrial Radial Drlling Machine Z3050 Hydraulic Radial Drlling Machine Mechanical Radial Arm

Product Description

Product main features:
Industrial Radial Drlling Machine Z3050 Hydraulic Radial Drlling Machine Mechanical Radial Arm
The spindle box can move left and right on the rocker arm and rotate around the column with the rocker arm. The rocker arm can also be lifted up and down along the outer column to adapt to the processing of workpieces with different heights. Smaller workpieces can be installed on the workbench, and larger workpieces can be directly placed on the machine base or the ground. Radial drilling machine bed is widely used in single and small batch production to process large volume and weight of workpieces.Rocker arm drilling machine processing range is wide, can be used to drill large workpieces of various screw holes, thread bottom holes and oil holes.Rocker arm drill bed is used to process small and medium-sized holes on heavy workpiece or porous workpiece, mainly composed of base, column, rocking arm, spindle box, spindle workpiece table, etc.When the rocker drill bed works, the rocker arm can rotate around the column, and the spindle box can be moved radially on the rocker arm.This points the drill bit to the axis of each processed hole for hole processing.Use more flexible.Generally, when the workpiece is drilling, the workpiece is often clamped on the workbench.When the large workpiece is processed, the workpiece can be clamped on the drill bed base.Depending on the height of the workpiece, the rocking arm can be moved along the column up and down after the locking device is loosened, so that the main shaft box and the drill bit are in the appropriate height position.

Specification	Z3032X10	Z3040X14	Z3050X16	Z3063X18	Z3080X20
Max drilling diameter (mm)	32	40	50	63	80
Distance between spindle axis and coulumn(mm)	170-1100	260-1210	350-1500	400-1600	550-1600
Spindle travel(mm)	120	260	350	400	450
Spindle taper(morse)	MT4	MT4	MT5	MT6	MT6
Number of spindle speeds	6	12	12	16	16
Steps of spindle feeds	3	3	4	16	16
Radial ratation angle	360	360	360	180	180
Main motor (kw)	1.5	2.2	4	5.5	7.5

Details Display
Henan Baishun Machinery Equipment Co.,Ltd is a professional manufacturer, which especially work for Slotting machine,Vertical lathe machine, CNC Vertical lathe machine, CNC Horizontal lathe machine, Roll lathe machine, Gear hobbing machine, Pole erection machine, Shredder machine,etc. With 14 years experience for lathe machines, we have export our products to Peru, Brazil, Chile, Mexico, Italy, Indonesia, Sri Lanka, Russia, and Uzbekistan.ect. Our company attaches great importance to international technical exchanges and cooperation, has introduced advanced technology and craft from United States, Germany, Australia and other countries, establishes the international advanced production lines and first-class modern testing base. Welcome all friends visiting and communicating and cooperating.
