Zetron Zw-G200 High-Precision Laser Methane Leak Gas Detector: Unmatched Accuracy in Gas Detection

Product Description

ZW-G200 Laser Mathane Gas Detector Natural Gas Leak Deatector
Product Description

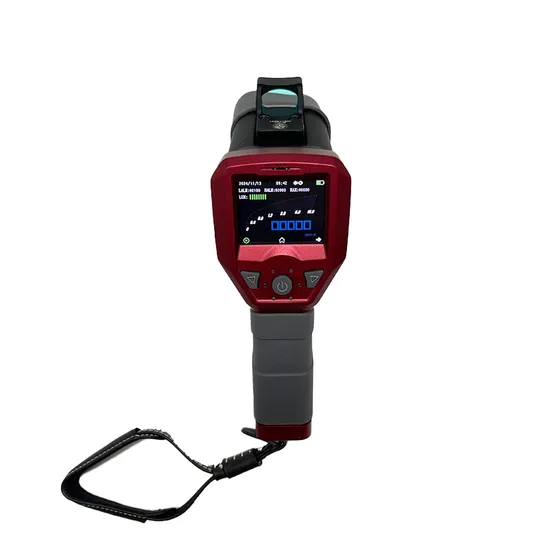

The remote detector ZW-G200 Remote Laser Methane Gas Detector is composed of a transmitter unit and a receiver unit, the two units are integrated in a compact housing. When it probes gas leakage in a remote area, the transmitter emits a laser beam to a distant reflector the area. While the laser beam passes through the possible leakage point in the area, the receiver receives the reflected light as the feedback signal for processing and calculation. Utilizing TDLAS ( Tunable Diode Laser Absorption Spectroscopy) technology, JJY150 / JJY100 can accurately and instantaneously provide the cumulative methane concentration results in the area, and trigger the alarm if the methane concentration is above alarm level.
Product Feature
SO,CE,FCC, ROHS, CNEX ApprovedHigh resolution & Fast respondingPrinciple: Laser SpectroscopyDetection distance: 150-200 metersScope automatically powers on when turned onNo need for regular calibration, maintenance freeEx ib IIB T4 GbIP65 Product Parameters

Detection Gas	Methane CH4
Detection principle	Laser Spectroscopy
Detection distance	Max 200 meters
Measuring range	0-65535ppm.m
Resolution	1ppm.m
Accuracy	±5%
Respond time	0.01s
Gas Detection Effective Distance	0.5~50m/100m/150m/200m
Display	colorful screen, LCD display
Sensor lifetime	5-10 years
Alarm	LA 100ppm.m; HA 2000ppm.m(adjustable)
Alarm mode	digital value, curve indication, sound+light+vibration alarm
Protection level	IP65
Product Size	172.5mmx216mmx77.5mm
Weight	750g
Protection grade	Ex ib IIC T4 Gb
Working environment	-20ºC~+50ºC, ≤95%RH (non-condensing occasions)
Laser class	Detection laser near infrared (1650nm) laser safety level ClassIIR Indicate laser green (532nm) laser safety level ClassIIR
Working condition	(-30~55)ºC; ≤93%RH
Working pressure	80kPa~116kPa
Storage temperature	(-40~60)ºC
Battery	rechargeable Li-ion battery, 5000mAh, at least 500 recharging times
Working time	>10 hours
Working voltage	(3.7~4.2)V DC
Warranty time	1 year

Application
The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology and other industries and places that need safety detection of toxic and harmful, explosion.
Certifications
Company Profile
Beijing Zetron Technology Co., Ltd, formerly Beijing Senre Technology Co., Ltd was founded in 2006, located in Beijing with convenient transportation access. We have almost 16 years experience in the retail, import and export of gas detection and monitoring equipment.
This experience has enabled us to form an organisation based on knowledge and expertise and have allowed us to supply a range of gas detectors and monitors that are tailored to our customers needs and budgets. Our aim is to provide the best values products with high quality and style.To provide the new affordable and complete service for gas detection needs for the industrial, engineering and shipping market and our friendly staff are here to help with advice and prices. So far, we have customers/buyers from over 20 countries/regions like Bulgaria, Brazil, Canada, China, Colombia, Germany, Iraq, Japan, Philippines, Russian Federation, Singapore, Taiwan, Thailand, Uruguay, United States, Ukraine, Vietnam, etc.
The list of countries still expanding.....!!We are committed to become the International Well Know Provider to provide similar or better alternative, original merchandises & service to meet customers' needs, requirements and solutions. Every customer is important to us and we strive to satisfy all our Customers needs and expectations.Local and International Distributors, Dealers and Resellers are Welcomed! Please contact us at the homepage.
