High precision Different Size Manufacturer Thermocouple Bare Alloy Wire Chromel-Alumel for electric insulated cable/copper wire/hdmi cable

Product Description

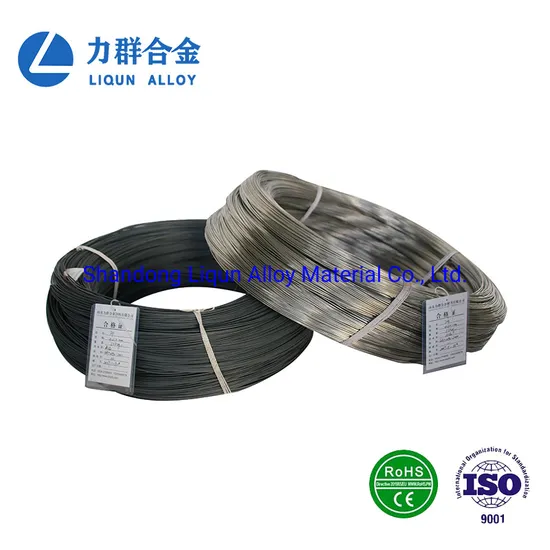

Manufacture Of K Type NiCr-NiAl Bare Thermocouple Alloy Wire Product Description Type K has a better resistance to oxidation than other types of thermocouple (except type N) and is particularly recommended for oxidizing or inert atmospheres.It should not be used without protection in sulphurous atmospheres, in reducing atmospheres or a long time in a vacuum.Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures. Product Parameters 1.Chemical composition and mechanical properties

Product	Chemical Composition/%				Density (g/cm3)	Melting point (ºC)	Resistivity (μΩ.cm)	Tensile Strength (Mpa)
	Ni	Cr	Si	Al
KP(+) Nickel Chrome	90	10	-	-	8.7	1427	70	>490
KN(-) Nickel Aiuminum	96	-	1	3	8.6	1399	29	>390

2.Maximum operating temperatures

Alloy wire Dia/mm	The long-term operating temperatures/°C	The short-term operating temperatures/°C
0.3	700	800
0.5	800	900
0.8,1.0	900	1000
1.2,1.6	1000	1100
2.0,2.5	1100	1200
3.2	1200	1300

3.Couple KP/KN EMF reference table (μV)

Operating temperatures/°C	Nominal value of thermoelectric EMF	Level I
		Tolerance	Range of EMF
100	4 096	±46	4 050-4 142
200	8 138	±44	8 094-8 182
300	12 209	±50	12 159-12 259
400	16 397	±68	16 329-16 465
500	20 644	±85	20 559-20 729
600	24 905	±102	24 803-25 007
700	29 129	±117	29 012-29 246
800	33 275	±131	33 144-33 406
900	37 326	±144	37 182-37 470
1000	41 276	±156	41 120-41 432
1100	45 119	±167	44 952-45 286
1200	48 838	-	-
1300	52 410	-	-

Detailed Photos
Company Profile Packaging & Shipping
FAQ Q1.What is the nature of the company?
A: We are a production enterprise, our company has its own factory.
Q2. What is the MOQ of an order of your company?
A: Our company's MOQ is 100 kg for each type of product.
Q3.Can I get a sample before mass production ?
A: Sample is free,the shipping cost of the sample is paid by the customer .
Q4.How long is the mass production cycle of product?
A: We will end the production within 15-20 days after receiving the deposit.
Q5.What payment method does your company support?
A: We can accept T/T, L/C ,you can choose the one which the most convenient or most effective for you .
