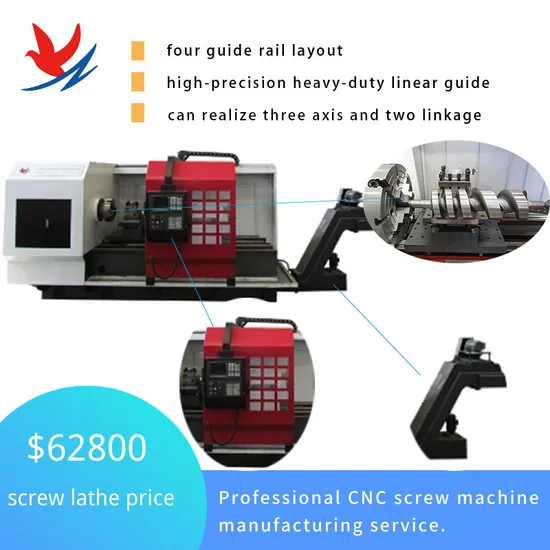

Lxk420 CNC Variable Pitch Screw Lathe for Pump Stators

Product Description

SUMORE
Twenty years of experience in industry and trade integration. The fastest delivery cycle in the industry.
100% response rate of customer service online at any time.<view more>>>>> Product Description
2022 Kangnuo Lxk420 CNC Variable Pitch Screw Lathe for Pump Stators
* MACH & GSK & SIEMENS & FANUC Programming Systems
* Professional Electronic System
* Upgraded PC-based Controller
* High Rigidity Guide Way & Bed Construction
* Powerful Main Motor & Reliable Servo Motor
* High Precision for All Axes Movements
* Automatic Tool Charger & Multiple Tool Positions
* Cabinet Door Opening System & Considerable Safety Signs
PRODUCT SPECIFICATIONS

Item		Unit	Specification	note
Slant bed degree		°	45°
swing over bed		mm	560
Maximum cutting length		mm	500
Maximum cutting diameter		mm	350
Maximum turning diameter on slide plate		mm	350
Standard cutting diameter		mm	280
spindle nose form and code			A2-6	A2-8 is optional
Diameter of spindle hole		mm	65	80
Maximum bar diameter		mm	50	70
Single spindle headstock	Spindle speed range/	r/min/Nm	50~4500/235	GSK988TA
	Maximum output torque
	of spindle
Output power of main motor	30min/continuity	kW	15/11kw	ZJY265A-11AM-B5
Standard chuck	Chuck diameter	inch	8²	10 / 12 inch optional
X-axis fast moving speed		m/min	30	Ball linear guideway
Z-axis fast moving speed		m/min	30	Ball linear guideway
X-axis travel		mm	200
Z-axis travel		mm	560
Standard tool holder form			Horizontal 8 station	12 station / serve optional
tailstock travel		mm	450
Tailstock sleeve travel		mm	100
Taper of tailstock sleeve		Morse	5#
Tool size	External circular knife	mm	25×25
	Boring blade diameter	mm	φ40/φ32/φ25/φ20
The cutter head selects the tool nearby			yes
Machine weight	Total weight	kg	3600
maximum safe load	Disk workpiece	kg	200	(Including chuck and other machine tool accessories)
	Shaft workpiece	kg	500
dimension of machine tool	(length * width * height)	mm	2790×1900×1850	Size not include chip conveyor

PRODUCT CONFIGURATION

A2-6 4500 rpm spindle

GSK Control system

8-station servo hydraulic tool

Hydraulic chuck

Ball screw and line track

A convex and a flat tailstock design

GSK control operating system A2-6 4500 rpm spindle 8-station servo hydraulic tool magazine Automatic tool change in 2 seconds Ball screw and line track
A convex and a flat tailstock design Other Optional configuration

SYNTEC 22MA

FANUC

SIEMENS

HNC808DM
