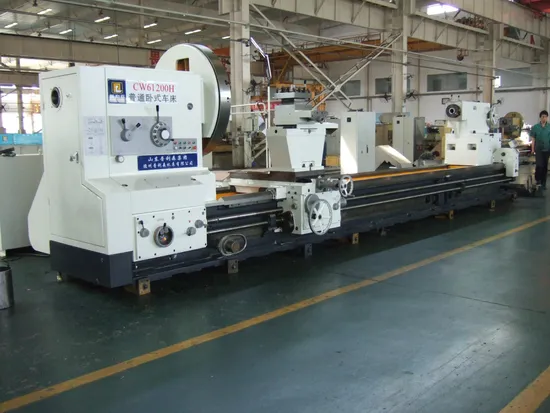

Cw61200h-Swing Over Bed 2000mm-3m 20tons Workpiece Loads Heavy Duty Horizontal Lathe Large Size Lathe Torno
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
CW61200H-3M
Processing Accessory
Plate, Shaft, Pipes
Guide Rail
Horizontal Guide Rail
Tool Holder
Single Turret
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Horizontal Large Lathe
Swing Dia.Over Bed 2000mm
Workpiece Load
20tons
Transport Package
Wooden Case
Specification
CE
Trademark
precion
Origin
Dezhou, Shandong, Pr. China
HS Code
84581900
Production Capacity
700 Sets/Year
Product Description
These lathes can perform to turn endfaces ,cylindrical surfaces and internal holes of various parts as well as metric, inch ,module and pitch threads. The top slides can be operated individually by power for cutting short taper surface also. It also can be turned automatically through the compound movement combining longitudinal feed with the top slide feed. Moreover ,the machines may be used for drilling ,boring and trepanning. The are characteristics of power ,high spindle speed and high rigidity. The various ferrous and non-ferrous metal parts may be turned through the heavy cutting by carbon alloy tools.
Main Specifications and Features
| SPECIFICATION | Model | ||
| CW61200H | |||
| Max.swing diameter over bed | 2040 | ||
| Max.swing diameter over crossslide | 1650 | ||
| Width of bed | 1100mm | ||
| Max.length of workpiece | 3000mm | ||
| Max. loading weight between centers | 20 tons | ||
| Spindle nose | A15 | ||
| Sindle bore diameter | 130mm | ||
| Taper of spindle bore | Metric No.140# | ||
| Range of spindle speed Dia. of front inner bearing of spindle | 3.15-315r/min 21kinds 3.5-290r/min 12 kinds 240mm | ||
| Longitudinal feeds range | 0.1-12mm/r 56 kinds | ||
| Transversal feeds range | 0.05-6mm/r 56kinds | ||
| Metrec thread range | 1-120mm 44kinds | ||
| Inch thread range | 3/8-28TPI 31kinds | ||
| Module thread range | 0.5-60mm 45kinds | ||
| Pitch thread range | 1-56TPI 25kinds | ||
| Tailstock sleeve taper | Metric 80# | ||
| Tailstock sleeve diameter | 280mm | ||
| Tailstock sleeve travel | 300mm | ||
| Main motor power | 30kW | ||
| Rapid motor power | 1.5kW | ||
| Coolant pump power | 0.125kW | ||
Stand Accessories
1. Φ 1600mm heavy chuck.
2. steady rest Φ400--700mm, 2-8m is mated with 1set and 9-12m is 2 sets and 13-16m is 3 sets.
3. Morse No.6 Center 1set
4. center sleeve 1set
6. tools 1set
7. Foundatin bolts 1 set
8. foundation screws 1set
Special Accessories
1 Φ 1800mm Φ2000mm four jaw chuck
2 steady rest Φ400-700mm, steady rest Φ700-1000mm steady rest.
3 Roller support (opened steady rest)
4 NSK spindle bearing
5 levelers
