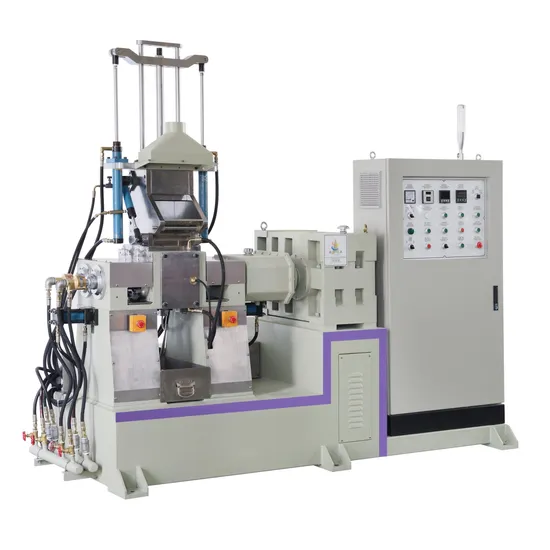

Small Lab Heated Banbury Mixer for Rubber 5L Kneader Internal Mixer Manufacturers Price

Product Description

Confidence comes from:
Our company has over 20 years of experience in repairing, renovating, and refurbishing excellent internal mixers abroad, such as Krupp from Germany, Francis and Shaw from the UK, Farrell from the US, and Kobe Steel Works from Japan. We have combined the design concepts and elements of various imported mixers, absorbed their strengths, and independently designed and produced this equipment.
Its characteristics are: high speed, high efficiency, high production capacity, low energy consumption, superior sealing performance, high automation program, truly belonging to the new environmentally friendly internal mixer.
The 5L experimental mixer is suitable for stirring, kneading, and dispersing various chemical raw materials such as EVA, natural rubber, and FKM. Then put the experimental ratio formula into the production line. (It is the best mixing equipment for small-scale production, sampling, laboratory and school teaching).

Models	Unit	CF-1L	CF-5L	CF-15L	CF-75L
Capacity	L	1L	5L	15L	75L
Motor Power	KW	15	37	45	160
Rotor Speed	r/min	8~70	8~70	8~70	4~40
Speed Ratio		1:1.24	1:1.24	1:1.24	1:1.23
Rotor Type		Shear	Shear	Shear	Shear
Press Type		Hydraulic	Hydraulic	Hydraulic	Hydraulic
Discharge		Falling	Falling	Falling	Falling
Temp Range	°C	Room Temp~250ºC	Room Temp~250ºC	Room Temp~250ºC	Room Temp~250ºC
Weight	Kg	1100	2500	4500	15000

CF-5L BANBURY
MAIN PARTS	DETAILS	REMARKS
Volume:	Capacity per batch:4~6KG (Depending on the material)
Main Motor:	30KW	Taiwan brand: TECO
Reducer:	Harden reducer	Guomao Reducer
Discharge mode:	Drop type
Pressurized hydraulic cylinder:	¢60
Drive bearing:	Brand: NSK	Japanese brands: NSK
Rotational Speed:	0-70/min (Inverter adjustable speed)	Taiwan brand: TECO
spare parts:	One set of standard maintenance tools, one manual and one circuit diagram.
Internal material	The chamber/pressure cover/leaf stirring shaft is made of high quality alloy steel, which is sturdy, wear-resistant and anti-corrosive.
Cooling:	By Water
Heating:	Electric heating, natural temperature - 250 degrees
Electrical components:	Machine has safe interlocking function.	Shihlin/Tend/Fotek/Omron
Spare parts:	Tool box, Manual.
Size:	L1800*W1100*H2000MM
Weight:	Around 2300KG
Power Supply:	3∮ AC380V 50HZ

Guangdong CFine Technology Co., Ltd. was established in 2013, is a manufacturer that specialized in designing, R&D, manufacturing, selling and maintain the plastic,rubber, powder metallurgy mixing and granulating equipments. The company has a unique courtyard, covering an area of 12000 square meters, a building area of 10000 square meters, and a team of nearly 100 people.
We have very professional R&D team to meet the special requirements of customers, to custom-made the machine. We have strong technical strength, full range of advanced equipments and well -trained manufacturing team, together with modern management mode, convenient and swift after-sale service, thus our machines are sold more than 100 countries, obtained accordant appreciation by the clients and we had established long-term and stable relationships of cooperation.
Quality first,service uppermost is our guideline. Honesty and integrity, innovation contribution is our principle. C Fine is becoming the most professional and influential manufacturer in this industry, C Fine brand is most popular in China, and also available to the world in the near future!
Q : WHY CHOOSE US?
1. More than 10 years of history in producing compounding and granulating machines for plasticand rubber industries. 6-8 years of foreign sales experience staff, more efficient and professional. Engineers oversea service more than 10 countries.
2. ISO: 9001, CE certificate.
3. Serve timely. Promise to give solution within 24 hours.
4. Short delivery date, No delay. Accept an urgent order for prompt shipment.
Q : WHAT ABOUT THE DELIVERY DATE?
1. Payment term: 50% of deposit, 50% before shipment.
2. Delivery term: FOB or Ex-work.
3. Delivery time: 30-70 days after receipt of the deposit depended on the machines.
Q : WHAT'S THE WARRANTY STATEMENT?
Free warranty for normal use for one year. Spare parts are available at low prices.
Q : WHAT ABOUT CFINE AFTER-SALES SERVICE?
1. We arrange engineers to install the machinery and training the workers for clients abroad if required.
2. A professional team solves problems after-sales.
3. We supply spare parts for customers at low prices after the warranty time.
4. We always update the new technology to every customer.
