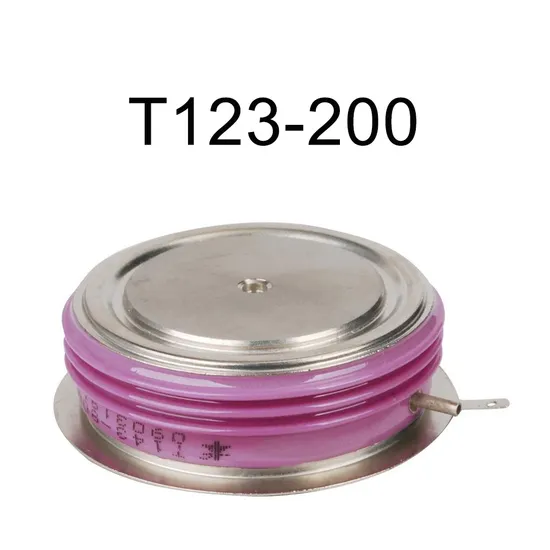

Russia Type Phase Control Thyristor (Capsule version) T123-200/250/320/500

Product Description

Product Description

Features	Typical Applications
All diffuse techinics	Big power transformer
Ceramic disc type seal	AC &DC motor control
Middle trigger	AC &DC switch
Bifacial cooled	Phase control rectification
High current	Inverter Welder
Explanation
IGT,VGT,IH are all TA=25ºC test data,others are all TA=Tjm test data. I²t=I²TSM×tw/2:tw=Half sine wave current,when at 50Hz, I²t=0.0051²TSM(A²S)
When at 60Hz,ITSM(8.3ms)=ITSM(10ms)×1.066,Tj=Tjm I²t(8.3ms)=I²t(10ms)×0.943,Tj=Tjm

Product Parameters

Russia Type Phase Control Thyristor(Capsule version)
Type	VRRM	lRRM	IT(AV)	IT(RSM)	IT(sm)	VTM/lTM	di/dt	dv/dt	VGT	IGT	IH	Tj	Rjc	Tq	M²	Wt	Outline
			Tc55ºC	Tc70ºC	10ms	25ºC	25ºC
	V	mA	A	A	kA	V/A	A/μS	V/μS	V	mA	mA	ºC	ºC/W	μS	KN	kg
T123-200	400-1600	15	200	265	4.0	1.90/628	200	200-1600	3.5	250	≤200	-40ºC ~ +125ºC	0.08	250	6	0.07	RC1 RC2
T123-250	400-1600	20	250	750	4.5	1.75/785	200	200-1600	3.5	250	≤200		0.08	250	6	0.07
T123-320	400-1600	20	330	1090	5.0	1.65/1005	200	500-1600	2.5	250	≤200		0.08	100-200	6	0.07
T123-500	400-800	30	500	550	6.0	1.50/1570	200	500-1600	2.5	200	≤250		0.07	63-125	6	0.07
T133-400	400-1600	30	400	935	8.0	1.75/1258	200	200-1600	2.5	200	≤250		0.045	250	10	0.18	RC2 RC3
T133-500	100-800	50	500	1720	10	1.50/1570	320	500-1600	2.5	150	≤250		0.035	160	10	0.10
T233-500	400-1800	30	500	1160	9.0	1.80/1570	200	500-1600	2.5	250	≤250		0.04	100-200	10	0.1
T133-600	100-800	50	600	2085	12	1.60/2512	200	500-1600	2.5	250	≤250		0.035	63-125	10	0.18
T133-630	100-1200	40	630	1430	12	1.65/1978	200	500-1600	2.5	250	≤250		0.04	80-160	10	0.10
T143-500	400-1600	40	500	1175	11	1.80/1570	200	200-1600	3.5	300	≤250		0.034	250	15	0.240	RC4 RC5
T243-500	1800-3200	40	550	1110	10	2.00/1570	200	500-1600	2.5	250	≤250		0.034	200-400	15	0.24
T143-600	900-1800	70	640	1250	9.0	1.95/1978	200	500-1600	2.5	250	≤300		0.032	160-320	15	0.24
T143-1000	100-1200	50	800	1585	14	1.70/2512	200	500-1600	2.5	250	≤300		0.032	100-200	15	0.160
T143-1250	100-800	30	1045	1860	19	1.60/3140	200	500-1600	2.5	250	≤300		0.030	80-160	15	0.160
T153-800	100-1000	50	800	1840	20	1.90/2512	200	200-1600	3.5	300	≤300		0.024	100-400	24	0.500	RC6 RC7
T153-1250	100-800	100	1250	3000	18	1.50/4000	300	500-1600	3.5	300	≤300		0.016	100-400	24	0.550
T153-1600	100-800	100	1600	3500	22	1.45/5000	300	500-1600	3.5	200	≤300		0.016	100-400	24	0.55
T253-500	5200-6000	150	530	1175	10	2.40/1570	100	500-1600	3.5	200	≤300		0.026	100-400	24	0.55
T253-800	2000-2400	70	800	1470	17	2.10/2500	200	200-1600	3.5	350	≤300		0.020	100-400	24	0.550
T253-1000	1000-1800	70	1000	2300	22	1.80/3140	200	200-1600	3.5	300	≤300		0.020	100-400	24	0.550
T253-1250	400-1800	70	1250	1830	28	1.60/3925	200	200-1600	3.5	300	≤300		0.018	100-400	24	0.550
T173-2000	1600-2000	200	2000	4600	49	1.65/6280	320	500-1600	3.5	300	≤300		0.011	100-400	24	1.200	RC8
T173-2500	200-2400	100	2700	5750	52	1.70/7850	200	500-1600	3.5	350	≤300		0.010	100-400	24	1.2
T173-3200	200-2400	200	3360	7360	60	1.50/10050	320	500-1600	3.5	300	≤300		0.010	100-400	24	1.200
T173-4000	200-2400	200	4000	9200	62	1.50/12560	200	500-1600	3.5	300	≤300		0.010	100-400	24	1.200
