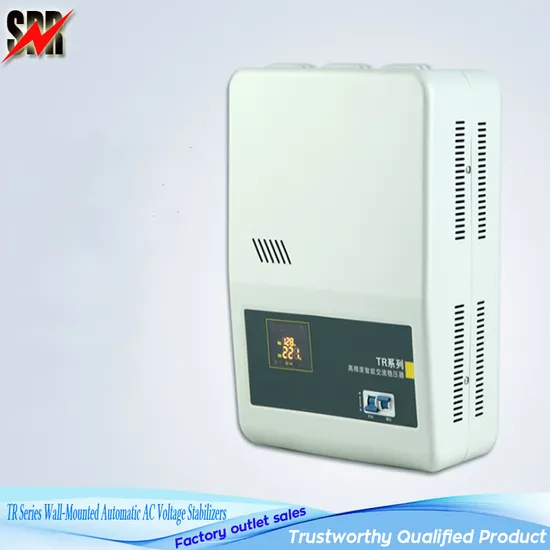

Tr Series 3kVA, 5kv, 10kVA, 15kVA Wall-Mounted Automatic AC Voltage Stabilizers Used for Air-Conditioner
| US$49.85-128.85 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
TR
Frequency Characteristics
Low Frequency
Usage
Tr
Frequency
Low Frequency
Size
Small
Iron Core Shape
C
Power Source
Linear Regulated Power Supply
Application Range
Hotel
Brand
Spr or OEM
Transport Package
Paper Box Packaging
Specification
199X98X38MM
Trademark
OEM
Origin
Wenzhou
HS Code
8413910000
Production Capacity
1000PCS/Week
Product Description
| Frequency | 50Hz/60Hz |
| Output delay time | 5 seconds delay /255 seconds |
| Output overload alarm | Exceeding 100% of the rated output capacity |
| Output overload protection | Exceeding 120% of the rated output capacity |
| Output overvoltage protection | > AC244±4V |
| Output undervoltage protection | Optional |
| Overheat protection | Transformer coil temperature:120±5ºC |
| LED input display range | 0-450V (overflow range display: Err) |
| LED output display range | 0- 450V (overflow range display: 000) |
| LED load display range | 000-119% (overflow range display: OVL) |
| LED status display | Delay, Normal, Protection |
| LED protection information display | Overvoltage, under voltage, over load, overfill |
| LED backlight | Program-controlled transformation 7 color font/fixed 7 color in a certain color |
| LED viewing angle | Traditional ON/OFF, New Self-Lock ON/OFF, New touch ON/SHOT |
| Delay display | 5 seconds /255 seconds countdown |
| Model | Rated output capacity(VA) | Rated output capacity(A) | Input voltage | The output voltage |
| TR500VA | 500VA | 2.3A | AC105-270V | 220V±3% |
| TR1000VA | 1000VA | 4.5A | AC105-270V | 220V±3% |
| TR1500VA | 1500VA | 7.0A | AC105-270V | 220V±3% |
| TR2000VA | 2000VA | 9.1A | AC105-270V | 220V±3% |
| TR3000VA | 3000VA | 13.6A | AC105-270V | 220V±10% |
| TR5000VA | 5000VA | 22.7A | AC105-270V | 220V±10% |
| TR8000VA | 8000VA | 36.4A | AC105-270V | 220V±10% |
| TR10000VA | 10000VA | 45.5A | AC105-270V | 220V±10% |
| TR15000VA | 15000VA | 54.5A | AC105-270V | 220V±10% |
