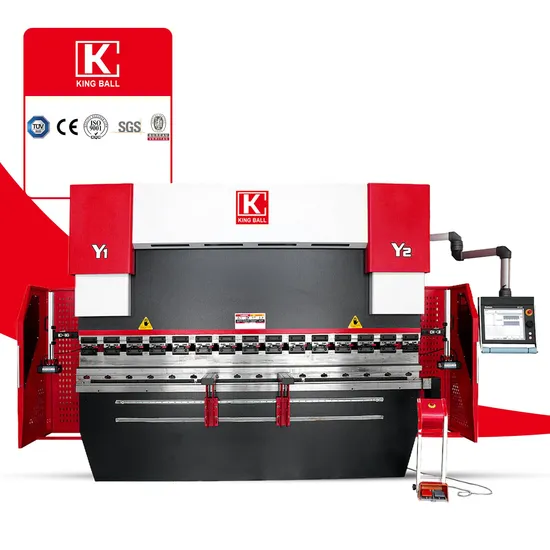

10mm Thickness Delem Hydraulic Press Brake Machine 3200 mm

Product Description

Products Description

Electro-hydraulic CNC Press Brake			KCN-10025	KCN-10032	KCN-10040
Capacity		kN	1000	1000	1000
Max. Bending Length		mm	2500	3200	4000
Between Columns		mm	2100	2600	3100
Max. Shut Height		mm	480	480	480
Slide Stroke		mm	200	200	200
Throat Depth		mm	400	400	400
Down Speed		mm/min	160	160	160
Pressing Speed		mm/min	10	10	10
Return Speed		mm/min	130	130	130
Main Motor Power		kW	7.5	7.5	7.5
X axis stroke		mm	500	500	500
X axis speed		mm/s	300	300	300
R axis stroke		mm	200	200	200
R axis speed		mm/s	60	60	60
Outline Size	L	mm	3000	3700	4500
	W	mm	1750	1750	1750
	H	mm	2450	2450	2450
Weight		kg	7000	7500	8000

Details Images
KCN Series Electro-hydraulic Synchronous CNC Press Brake Main functions and features Overall welded and processed structure. Save electricity, Compared with the traditional transmission device, the electricity consumption is 50%. Within one stroke, bending pressure can be controlled at random point, repeatability precision±0.01, parallelism 0.02,high working effective, can improve 30%. The noise is reduced and the machine is quieter. Save oil, Hydraulic fluid use is very small, only for the traditional 50 % Lower worktable has crowning device to anti deflection & upper tool has wedge compensation device. Delem CNC control system, grating ruler, Rexroth hydraulics, servo motors and other accessories of famous brand are installed for perfect machine performance. Ram stroke(Y1, Y2),backgauge (X,R,Z) are controlled by CNC controller while ball screw and linear guide rail installed for high repeatability precision. Imported ball screw and linear guide are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.
Main motor Delta servo motor SVP control technology,energy saving rate over 50%, avoid hydraulic oil fast heating
up,reduce hydraulic errors. Laser safety protection DSP Laser safety device protects the press brake operator from the danger of crushing between the moving and fixed part of the
machine.
DSP Laser safety device is mounted on the moving part of the machine, and the protection zone moves with the part. When an
obstacle is detected, such as an operators fingers, detection is immediate and the machine can be stopped. Bending follower Sheet supporting plate can follow the workpiece during the bending. The following degree and speed are controlled by CNC
controller. Bending-help device can move along linear guide left and right
The height can be adjusted up and down manually, also the de-
vice can move front and rear to match the die opening manually.
Two choices for supporting table: Brush and stainless tube. The bending-help device can be controlled to work simultaneously or independently Automatic Lase bending angle measurement system Angle measurement
Spring-back measurement
Very high accuracy Works contactless
