Automatic Aluminum Plastic Tube Filling Sealing Machine for Cosmetic Cream Ointment Gel

Product Description

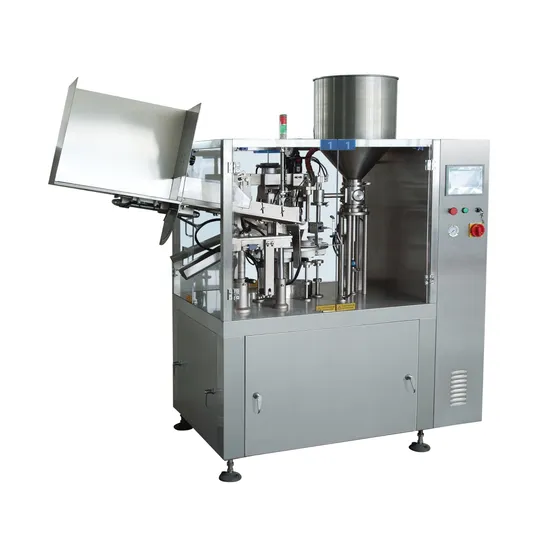

NF-60A Automatic Aluminum/Plastic Tube Filling Sealing Machine
Product Discription This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, tail folding, batch number embossing (include manufacture date) automatically. It's ideal equipment for plastic tube and laminated tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries. Specifications 1. This Product have 9 stations, can choose different station and equip corresponding manipulator to meet different type of tail folding, sealing requirement for alu tube, plastic tube, lead tube, laminated tubes, It is a multi-purpose machine.
2. Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing(plastic tube)/tail folding(aluminum tube), batch number printing, finished products discharging can be performed automatically (the whole procedure).
3. Tube storage can through motor to adjust up-down height as per different tube length. And can With external reversal feeding system, makes tube charging more convenient and tidy.
4. The mechanical linkage photo sensor precision tolerance is less than 0.2mm. reduce the chromatic aberration scope between tube and eye mark.
5/ Light, electric, pneumatic integrative control, No tube, no filling. Lower pressure, auto display (alarm); The machine stop automatically if tube error or open the safety door.
6. Double-layer jacket instant heater with inside air heating, it won't damage the pattern outer wall of tube and achieves firm and beautiful sealing effect.
Technical Parameter

NF-60
	Configuration Standard	Technical Parameters	Remarks
Infrastructure
	Main Machine Landing Area	(about)2m2
	Main Machine Working Area	(about)12m2
	Water Chiller Landing Area	(about)1m2
	Water Chiller Working Area	(about)2m2
	Whole Machine (L×W×H)	1950×1000×1800mm
	Integrated Structure	Union mode
	Weight	(about)850Kg
Machine case body
	Case Body Material	304
	Opening Mode of Safety Guard	Handle Door
	Safety Guard Material	Organic Glass
	Frame Below Platform	Stainless Steel
	Case Body Shape	Square-shape
Power, Main Motor etc.
	Power Supply	50Hz/380V 3P
	Main Motor	1.1KW
	Hot Air Generator	3KW
	Water Chiller	1.9KW
	Jacket barrel heating power	2 KW	Optional Additional cost
	Jacket barrel blending power	0.18 KW	Optional Additional cost
Production Capacity
	Operation Speed	30-50/min/max
	Filling Range	Plastic/laminated tube 5-250ml Aluminum tube 5-180ml
	Suitable Tube Length	Plastic/laminated tube 50-210mm Aluminum tube 50-180mm
	Suitable Tube Diameter	Plastic/laminated tube 13-50mm Aluminum tube 13-35mm

Layout ImagesLayout Images Change part for aluminum tube(need extra cost)

Sample Imagess Sample Images
