Multi Z3032X10 Universal Radial Drilling Machine

Product Description

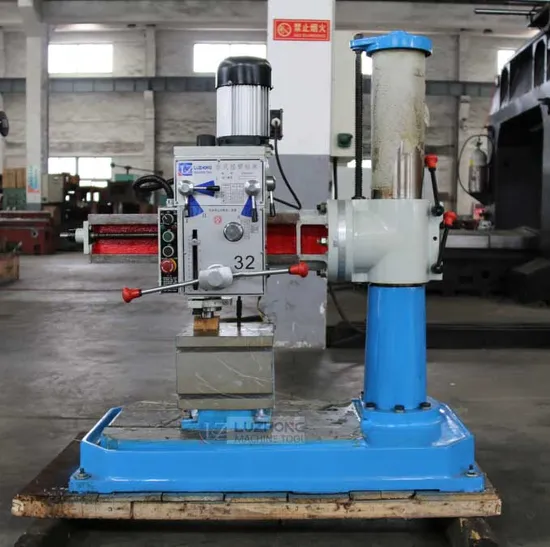

Multi Z3032X10 Universal Radial Drilling Machine
Product Description
Product Parameters
Product main technical parameters:

Specifications	Units	Z3032×10
Max. drilling diameter	mm	Φ32
Column diameter	mm	200
Distance of headstock horizontal movement	mm	710
Distance spindle nose and working surface of base	mm	330-1060
Rocker arm lift distance	mm	730
Spindle travel	mm	120
Spindle taper		MT4
Spindle speeds range	r/min	108 162 262 398 665 1000(6 steps)
Spindle feeding range	mm/r	0.10 0.16 0.25(3 steps)
Max. spindle allows feed resistance	N	5300
Rocker arm lifting speeds	m/min	1.21
Rocker rotary angle	°	+ 90°
Main motor power	kw	1.5/2.2
Lifting motor power	kw	0.55
Cooling pump motor power	kw	0.04
Net weight	kg	1080
Overall dimensions(L×W×H)	mm	1400×660×2060

Detailed Photos
Company Profile
FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
