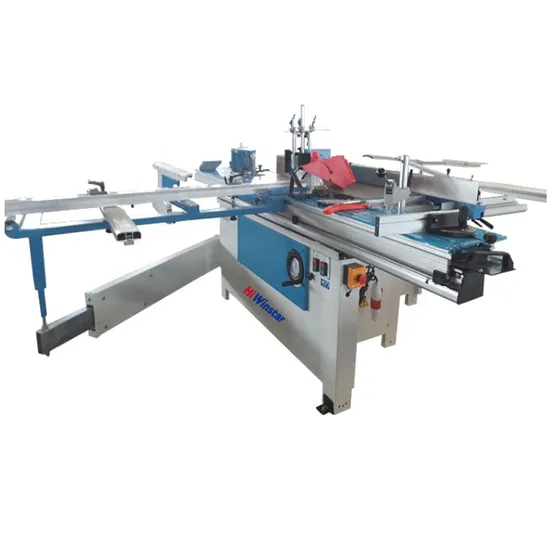

Ml410 Multifunction Woodworking Machine Combination Table Saw Planer Thicknesser Machine

Product Description

ML410 multifunction woodworking machine combination table saw planer thicknesser machine
Product Description

Model	ML410
Max. cross-cut width	2400mm
Saw blade diameter	305mm
Tilting saw blade	0-45°
Height of cut	90mm
Height of cut with saw blade at 45°	45mm
Ranges of thicknessing	6-240mm
spindle speeds	1750/3500/6700rpm
Spindle diameter	30mm
Suction dust hood	planing/thicknessing: 120mm, sawing milling: 100mm
Spindle useful length	85mm
Max. drilling diameter	16mm
Motor power	planer: 3kw/380v/50hz, saw/moulder: 2.2kw/380v/50hz
NW/GW	780/850kgs
Packing size	215x156x105cm+270x35x22cm

Wood combination machine
1.The sliding table
Providing stability and accuracy ! A miled ,strongly ribbed aluminium profile with multiple chambers in combination with the high quality guiding system ensures play-free.
2.Crosscut fence 2300mm
The scale on the crosscut fence is bevelled towards the operator ,this is assist you when setting the crosscut stop position and improve accuracy by preventing readout errors .The crosscut stop position indicator is perfectly integrated into the body of the crosscut stop.
3.Outrigger table
With integrated work piece roller and large telescopic crosscut fence ,it enables you to expertly carry out panel cuts ,trimmings and crosscuts of large dimensions.
4.Depth of cut
The surface of planer has a 4mm depth of cut.
5.Saw blade tilt 90º-45º
Saw blade angle adjustment from 90º-45º.
6.Router spindle Dia.Ø30mm(optional)Ø35- Ø40-- Ø50.
7.Tiltable planer fence
For planing and bevelling work the planer fence is tiltable from 90º-45º
The long planer fence profile allows accurate guilding of the work-piece.
8.Make the groove by scoring saw.
9.Cutter-block
The study cutter-block assembly.
Packaging & Shipping
Company Information
FAQ
1,Can you offer good price with fine quality also?
Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.
we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.
2,We will be protetcted if we are paying for orders?
Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years ****** trade assurance you could rely on,you will be protected very well.
3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.
We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours.
4,What's your production time? we want faster shipping time also.
Mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
