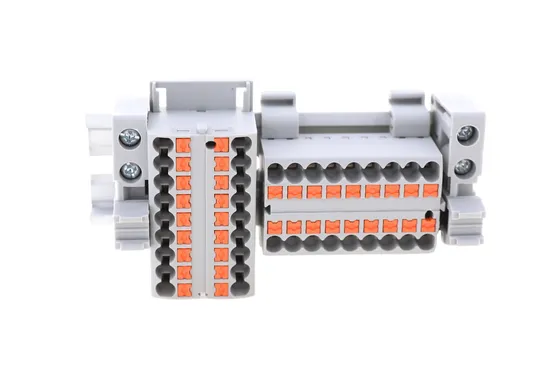

Electrical Terminal Block for Wire Contact Mini Distribution Block Ptfix 2.5mm

Product Description

JUT15-12*2.5 New Design Hot Sell push-in distribution terminal block

Overview
Connection Method	In-line
Number Of Rows	1
Electric Potential	1
Number Of Connections	12
Open Side Panel	NO
Insulation Materials	PA
Flame Retardant Grade, In Line With UL94	V0
Application Field	Widely used in electrical connection, industry, etc.
Color	gray,dark gray,green,yellow,cream,orange, black,red,blue,white,purple,Brown
Wiring Data
Load Contact
Stripping Length	8 mm - 10 mm
Rigid Conductor Cross Section	0.14 mm² - 4 mm²
Flexible Conductor Cross Section	0.14 mm² - 2.5 mm²
Rigid Conductor Cross Section AWG	26 - 12
Flexible Conductor Cross Section AWG	26 - 14
Size
Thickness	35.1mm
Width	28.8mm
Height	21.7mm

Features:
Terminal: With general-purpose mounting feet, can be installed on tracks NS32 or NS35. Closed bolt leading hole will not only facilitate operation of screwd-rivers, also prevent the bolt from dropping out. Electric potential distribution is realized by eitherconnecting central adaptor to the center of terminal or inserting a side adaptor to the cone jack. General auxiliaries, such as the end plate, segment spacer, and spacer, are attached for terminal with multiple sections. The insulating shell is made if imported engineering plastic-polyamide Nylon 66(PA66). It is of high mechanical intensity, good electic property, and super flexibility. Two ends on the top with white marking system to realize uniformed sign. Product lines:


Utility Electrical Co., Ltd., founded in 1990, is specialized in terminal blocks and switch labs, as well as the vendors. Our corporation is growing rapidly, and our technical force is abundant. Since our company was established, we have achieved remarkable results in the past twelve years. Sales performance and enterprise image are recognized by customers and colleagues. We have also achieved a brand effect. Based on the operation principle of customers first and lead by market, Utility makes deep research on terminal blocks and switch labs complied with international and domestic standards IEC,UL, CSA, VDE, GB, CE, and CCC.
From product exploitation to finished products, all the procedures are controlled by a professional team, who always take the responsibility to try to produce the salable products and suit all the automatization industry all around the world. Besides, Utility also refers to and brings in the technology of famous brand products, to innovate and improve constantly. At present Utility has tens of series products for clients to choose from. Our company has passed ISO9001 quality management system certification, and most of products passed UL CSA, CCC, CCS, CE certification, and part of products VDE certificate.
All the products comply with RoHS requirement. JUT1, JUT2, JUT3 and JUT4 series products have reached the advanced level as the same products at home and abroad. Parts of our products are used to improve the national electric net by the electric power department.
Recently Utility becomes more and more famous with the management principle exerted completely. Utility service is also appreciated by quite a few clients. "rising Utility, proud Utility team", Utility stick to the advanced management mode, the strong technology strength, the perfect craftwork course, high-class testing equipment and exquisite mould machining technologies, to produce high-quality products with an excellent sale team, a sale net and specialized services. Today Utility wins a new chapter to open the market.
FAQ
FAQ 1. who are we?
We are based in Zhejiang, China, start from 1997,sell to Domestic Market(35.00%),Eastern Europe(25.00%),South America(20.00%),Southeast Asia(5.00%),North America(4.00%),Western Europe(3.00%),Mid East(3.00%),Eastern Asia(2.00%),Southern Europe(1.00%),Northern Europe(1.00%),Africa(1.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Connector, Terminal Block, Circuit Breaker
4. why should you buy from us not from other suppliers?
1.Full range of terminal blocks and connectors 2.Small MOQ 3.Short lead time 4.UL, CUL, TUV, VDE, ENEC. CB, CE, RoHS certificates. 5. Have our own mould factory, R&D team, UL standard lab and auto production line, could do OEM or ODM service!
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,Western Union,Cash;
Language Spoken:English,Chinese Packaging & Shipping
Certifications
After Sales Service
