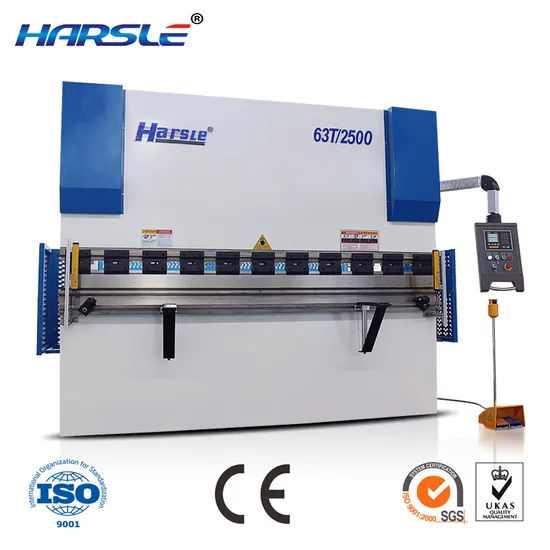

Bending Machine with Estun E21 Nc
| US$7,900.00-13,500.00 | 1 set (MOQ) |
Basic Info.
Model NO.
WC67K
Condition
New
Certification
ISO 9001:2008, CE
Automation
Manual
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Hydraulic Bending Machine
Color
as You Like
Company Nature
Manufaturer
Weight
7800kg
Controller
E21
Transport Package
Standard Package
Specification
3000*1500*2500mm
Trademark
harsle
Origin
Jiangsu, China
HS Code
8462219000
Production Capacity
1000sets
Product Description
Technical Parameters
| Type | Nominal Force(KN) | Worktable size(mm) | Poles Distance (mm) | Throat Depth (mm) | Slider Travel (mm) | Max Open(mm) | Power(KW) | Dimension(mm) |
| 40T/2200 | 400 | 2200 | 1875 | 230 | 100 | 320 | 5.5 | 2200*1200*1910 |
| 40T/2500 | 400 | 2500 | 1875 | 230 | 100 | 320 | 5.5 | 2500*1200*1910 |
| 50T/2500 | 500 | 2500 | 1875 | 230 | 100 | 320 | 5.5 | 2500*1210*2000 |
| 63T/2500 | 630 | 2500 | 2020 | 250 | 100 | 320 | 5.5 | 2500*1300*2210 |
| 63T/3200 | 630 | 3200 | 2575 | 250 | 100 | 320 | 5.5 | 3200*1300*2210 |
| 80T/2500 | 800 | 2500 | 2020 | 300 | 100 | 320 | 7.5 | 2500*1400*2300 |
| 80T/3200 | 800 | 3200 | 2590 | 320 | 100 | 350 | 7.5 | 3200*1500*2300 |
| 80T/4000 | 800 | 4000 | 3050 | 320 | 100 | 350 | 7.5 | 4000*1500*2400 |
| 100T/2500 | 100 | 2500 | 2020 | 320 | 120 | 320 | 7.5 | 2500*1600*2400 |
| 100T/3200 | 100 | 3200 | 2600 | 320 | 120 | 370 | 7.5 | 3200*1600*2600 |
| 100T/4000 | 100 | 4000 | 3050 | 320 | 120 | 370 | 7.5 | 4000*1600*2700 |
| 125T/3200 | 1250 | 3200 | 2600 | 320 | 120 | 370 | 7.5 | 3200*1600*2600 |
| 125T/4000 | 1250 | 4000 | 3050 | 320 | 120 | 370 | 7.5 | 4000*1600*2700 |
| 160T/3200 | 1600 | 3200 | 2600 | 320 | 200 | 460 | 11 | 3200*1700*2700 |
| 160T/4000 | 1600 | 4000 | 3000 | 320 | 200 | 460 | 11 | 4000*1700*2800 |
| 160T/5000 | 1600 | 5000 | 4000 | 320 | 200 | 460 | 11 | 5000*1900*3100 |
| 160T/6000 | 1600 | 6000 | 4940 | 320 | 200 | 460 | 11 | 6000*1900*3200 |
| 200T/3200 | 2000 | 3200 | 2600 | 320 | 200 | 460 | 11 | 3200*1950*2800 |
| 200T/4000 | 2000 | 4000 | 3000 | 320 | 200 | 460 | 11 | 4000*1950*2800 |
| 200T/5000 | 2000 | 5000 | 4000 | 320 | 200 | 460 | 11 | 5000*1950*3000 |
| 200T/6000 | 2000 | 6000 | 5000 | 320 | 200 | 460 | 11 | 6000*1950*3300 |
| 250T/3200 | 2500 | 3200 | 2500 | 400 | 250 | 590 | 18.5 | 3200*2000*3200 |
| 250T/4000 | 2500 | 4000 | 3000 | 400 | 250 | 590 | 18.5 | 4000*2000*3400 |
| 250T/5000 | 2500 | 5000 | 4000 | 400 | 250 | 590 | 18.5 | 5000*2000*3400 |
| 250T/6000 | 2500 | 6000 | 5000 | 400 | 250 | 590 | 18.5 | 6000*2000*3400 |
| 300T/3200 | 3000 | 3200 | 2530 | 400 | 250 | 590 | 22 | 3200*2000*3450 |
| 300T/4000 | 3000 | 4000 | 3000 | 400 | 250 | 590 | 22 | 4000*2000*3450 |
| 300T/5000 | 3000 | 5000 | 4000 | 400 | 250 | 590 | 22 | 5000*2000*3450 |
| 300T/6000 | 3000 | 6000 | 5000 | 400 | 250 | 590 | 22 | 6000*2000*3450 |
| 400T/4000 | 4000 | 4000 | 3000 | 400 | 250 | 590 | 30 | 4000*2180*3400 |
| 400T/5000 | 4000 | 5000 | 4000 | 400 | 250 | 590 | 30 | 5000*2180*3500 |
| 400T/6000 | 4000 | 6000 | 5000 | 400 | 250 | 590 | 30 | 6000*2180*3800 |
| 500T/5000 | 5000 | 5000 | 4000 | 400 | 250 | 590 | 45 | 5000*3500*3700 |
| 500T/6000 | 5000 | 6000 | 5000 | 400 | 320 | 590 | 45 | 6000*3500*3700 |
| 600T/4000 | 6000 | 4000 | 3000 | 400 | 320 | 590 | 55 | 4000*4500*3700 |
| 600T/6000 | 6000 | 6000 | 5000 | 400 | 320 | 590 | 55 | 6000*4500*3700 |
| 800T/6000 | 8000 | 6000 | 5000 | 400 | 320 | 590 | 55 | 6000*4500*6000 |
