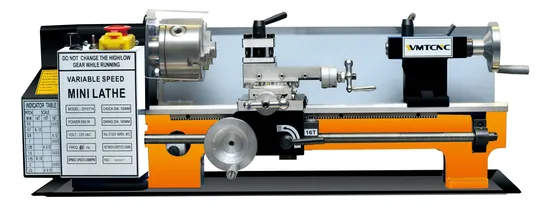

DIY0714 mini lathe machine for metalworking and hobby use

Product Description

Product Description
Mini DIY Metal Lathe DIY0714 Features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Spindle speed range 50-2500rpm.
6. Easy operating gear box has various feeds and thread cutting function.
7. With or without cabinet according to requirement.
Main specification:

Specification	DIY0708 / DIY0712 / DIY0714
Distance between centers	200/300/350mm(8"/11-3/4"/13-3/4")
Swing over bed	Φ180mm(7")
Spindle taper	MT3
Tailstock taper	MT2
Chuck diameter	Φ80mm(3-1/4")
Spindle bore	Φ20mm(3/4")
Range of metric threads	0.5-2.5
Range of imperial threads	12-52T.P.I
Spindle speed	50-2500rpm
Power of motor	400/550w
Net weight	35/38/40kg
Gross weight	38/42/45kg

Detailed Images
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
