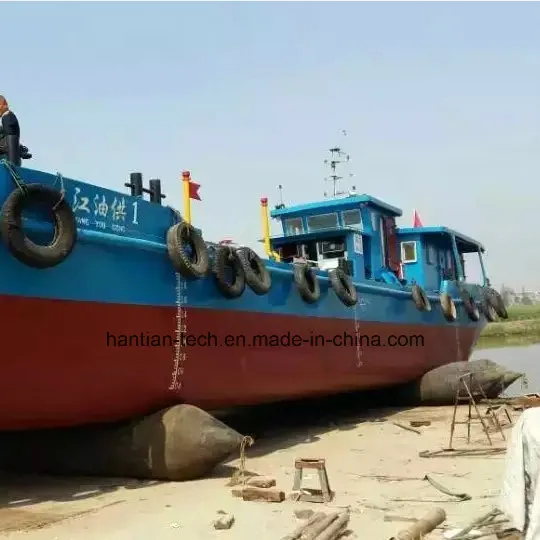

Ship Launching Marine Salvage Rubber Balloon Airbags

Product Description

Ship Launching Marine Salvage Rubber balloon Airbags

Salvage Rubber Airbag is made of rubber material, which is different from the metal another salvage equipment. It can produce water buoyancy, the overall sealed, submerged in water can bring huge buoyancy, So it is mainly used for salvage sunken vessels, weight lifting and moving and some other emergency rescue projects etc.

Specification:

Diameter Length	Buoyancy (Tons)
	1.0m	1.2m	1.5m	1.8m	2.0m
5 m	3.93	5.65	8.84	12.72	15.71
6 m	4.71	6.79	10.60	15.27	18.85
7 m	5.50	7.92	12.37	17.81	21.99
8 m	6.28	9.05	14.14	20.36	25.13
9 m	7.07	10.18	15.90	22.90	28.27
10m	7.85	11.31	17.67	25.45	31.42
11m	8.64	12.44	19.44	27.99	34.56
12m	9.42	13.57	21.21	30.54	37.70
13m	10.21	14.70	22.97	33.08	40.84
14m	11.00	15.83	24.74	35.63	43.98
15m	11.78	16.96	26.51	38.17	47.12
16m	12.57	18.10	28.27	40.72	50.27
17m	13.35	19.23	30.04	43.26	53.41
18m	14.14	20.36	31.81	45.80	56.55

Working Principle & Application Features:

Through filling the compressed air to produce buoyancy, then using buoyancy to salvage, easy operation and safe and reliable.
In addition to hang a vessel in a fixed position or connected with lifting jack of the bottom of Vessel, Marine Rubber Airbags also can be placed inside inside the Vessel cabin, through filling out the cabin water to provide buoyancy.
