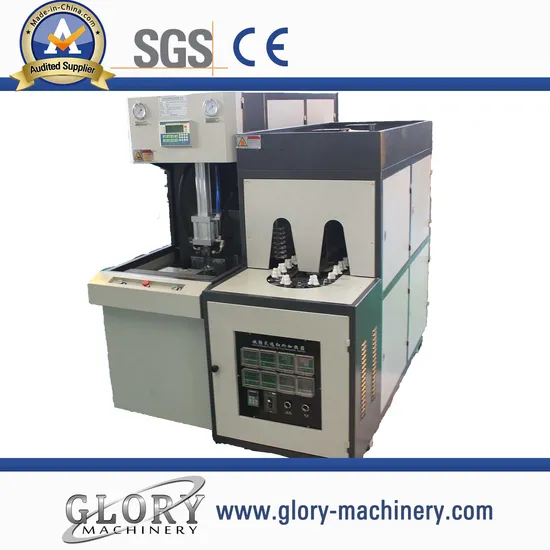

Semi Auto 20L Jar Pet Stretching Blowing Machine

Product Description

Product Description
Features Semi Auto 20L Jar Pet Stretching Blowing Machine
1. Special design for PET Gallon Bottle up to 6 Gallon
2. Produce wide mouth jar up to 25 liter with neck size up to 200mm.
3. Using Infrared reheat units to achieve uniform heating throughout the wall of preform
4. Adopt special designed preform heating system to ensure the optimal heating effect for 730g thick-wall preform
5. Special designed fan-cooling system in the heating channels to keep the oven with constant temperature and ensure the preform can be heated completely.
6. Water cooling system ensures the quality of preform neck.
7. Up to 90 bottles/hour using one-cavity mold for 5-gallon bottle
8. Use advanced PLC control system with counting function and time-control precision to 0.01second, and a use-friendly panel.
9. Equipped with special designed air storage units
10. Simple installation & startup adjustment
Main parameters

Item	Parameters	Remark
Max size	20L	1cavity
Theory capacity	80PCS/H	18.9L
Heating power	34kw	380V 50HZ
Blowing pressure	<4.0Mpa	Action pressure ≤0.8 Mpa
Shift Stroke	340mm	max
Temperature segments	14sets	Intelligent ZKD digital voltage regulator
Main machine size	2200×700×2250
weight	1500kg
Thickness of moulds	300-400 mm
Heating type	Far-infrared	Rotate heating system

Detailed Photos
