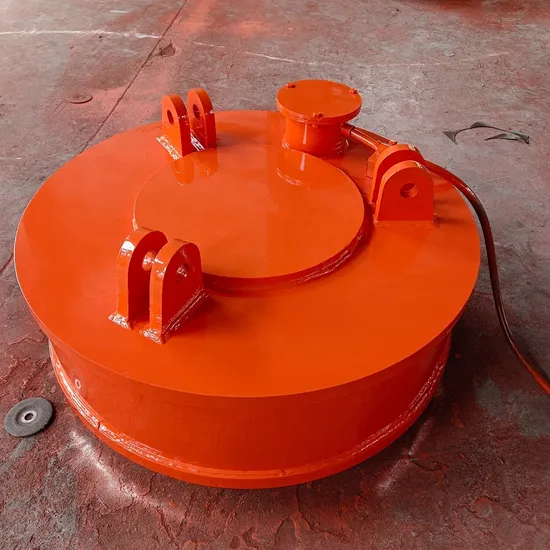

Electric Magnetic Chuck of Diameter 1100mm for Steel Scraps

Product Description

Product Description
Electric Magnetic Chuck is used for transporting iron scraps,ingots,steel chips,slabs,steel plates and steel sheets.The electromagnet is suitable for installing on excavator,crane;and also can be submerged under water and used at very high temperature and normal temperature in metallurgical plants,scrap yards and ship-building plants.
Features:
75% or 60% Duty Cycle
All welded heavy duty construction
Class H insulation
Powerful deep magnetic field design
Aluminum Coil,Copper Coil optional

Product Parameters

Model	Electric current (A)	Cold-state power (kw)	lifting capacity (kg) cold/hot state			Mass (kg)	Overall dimension (mm)
			steel ball	cast iron	steel scrap		A	B	C	D	E
MW5-70L/1	15	3.3	2500	380/200	120/100	490	700	800	160	90	30
MW5-80L/1	18	3.96	3000	480/250	150/300	620	800	800	160	90	30
MW5-90L/1	26.6	5.9	4500	650/440	250/200	800	900	1090	200	125	40
MW5-110L/1	35	7.7	6500	1000/800	450/400	1350	1100	1140	220	150	45
MW5-120L/1	45.5	10	7500	1300/1000	600/500	1700	1200	1100	220	150	45
MW5-130L/1	54	12	8500	1400/1100	700/600	2010	1300	1240	250	175	50
MW5-150L/1	71.2	15.6	11000	1900/1500	1100/900	2830	1500	1250	350	210	60
MW5-165L/1	75	16.5	12500	2300/1800	1300/1100	3200	1650	1590	370	230	75
MW5-180L/1	102	22.5	14500	2750/2100	1600/1350	4230	1800	1490	370	230	75
MW5-210L/1	129	28.4	21000	3500/2800	2200/1850	7000	2100	1860	400	250	80
MW5-240L/1	154	33.9	28000	4800/3800	2850/2250	9000	2400	2020	450	280	90

Detailed Photos
Complete set of equipment:
· Electromagnet lifter;
· Spring type cable reel with Cable;
· Rectifier control cabinet (Normal type,Strong excitation type, Battery back-up type);
· Cable connector / Quick coupling.
About inquiry:
To help you get the best lifting electromagnet for your application, we should have the following information:
1. What are the materials you want to lift?
For example: Steel scraps, steel billet, ingot, plate, bar or ball. For steel plate, please let us know its dimension (Length×Width×Thickness mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or outdoor?
4. Kindly provide your power supply information (__V, DC/AC,__Hz), and information for crane (single beam or double beam, single hook or double hook, how about the loading capacity).
5. Do you need full set with cable reel, control cabinet or only magnet?
6. Do you need FOB or CIF price, which port?
(More details, please feel free to contact us directly.)
Application
Company Profile
Certifications
FAQ
1. Why customers choose us?
We are a professional lifting magnet products manufacturer with 20 years experience in China.We have our own factory which can offer better price, control delivery time better based on strict quality inspection and good after-service guarantee.
2.What is your payment terms?
30% T/T deposit,70% balance before factory delivery.Or 100% irrevocable L/C at sight.
3.How long is your delivery time?
Standard model is within 8 workdays after deposit confirmed.
Customerized model will depend on actual production needs.
4.What is the total cost of freight?
Please provide your seaport or airport of destination so that give accurate freight.
5.Can I have product with our design and nameplate?
Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.
6.What is your warranty and after service?
Our product is with 12 months warranty from delivery. We also support engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.
