Materials Rheology Tester for Accurate Viscosity Measurement and Analysis

Product Description

Product Description

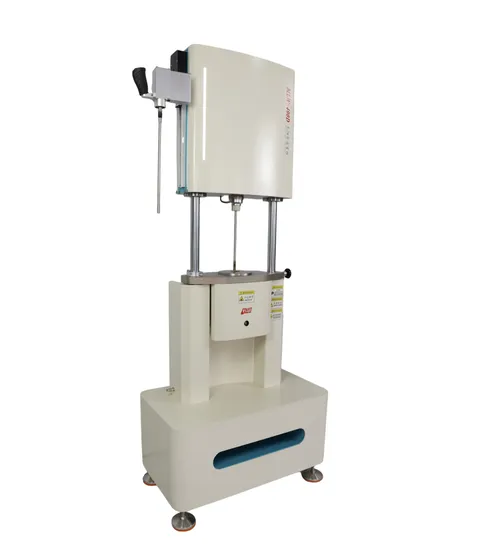

Capillary Rheometer MLW-400D Application area 1. Introducing the MLW-400D Rheometer, an exceptional creation designed to meet the rigorous 'capillary' standards set by ISO 11443 and HG/T 4300-2012. This outstanding instrument is indispensable for analyzing shear rate and flow properties of plastic and polymer substrates. With its state-of-the-art temperature control, it delivers precise measurements of melt flow under shear stress, facilitating exact assessments of the apparent viscosity in thermoplastics.
2. As a testament to cutting-edge technology, this intelligent capillary rheometer offers unrivaled versatility. It operates seamlessly under constant pressure, velocity, or temperature, adapting to diverse heating and shear rates. Its advanced software automates the precise determination of critical parameters such as pressure and temperature, customized for an extensive range of plastics and die diameters, while effortlessly generating and retaining accurate data curves.
3. Designed with customization in mind, this rheometer provides an array of configurations including low or high-temperature models, varied pressures, and rod diameters, ensuring tailored alignment with unique user requirements.
Detailed Photos System composition The system's design showcases a unique 'mouth'-shaped frame, emphasizing its sturdy structural integrity while exuding sophistication and advanced technology. Its transmission mechanism, powered by a high-precision Taiwanese ball screw, ensures dual kinetic energy body movement, thereby boosting operational stability during testing.The speed control system features a high-precision AC servo mechanism, ensuring meticulous regulation of displacement and pressure.e. The heating unit employs advanced spiral heating wire technology for uniform barrel heating, alongside an innovative movable furnace design that simplifies post-experimentation cleaning. The cutting-edge measurement and control system provides wireless remote functionality for mobile preloading. The user-friendly software interface allows for effortless test mode configuration and real-time display of curves and calculation results.
Product Parameters

Temperature range	Room temperature~400ºC	Heating rate	1-10ºC/min,Continuously adjustable, and rapid heating
Temperature measurement display accuracy	0.1ºC	Pressure range	1-100MPa±0.5%
Maximum driving force	10KN ,20KN(Can be customized according to customer requirements)	Pressure measurement accuracy	±0.5%FS
Pressure resolution	0.1Mpa	Velocity range	0.01-500mm/min
Deformation measurement accuracy	±0.5%FS	Plug diameter	φ12 mm(Can be customized according to customer requirements)
Plug area	113.04mm2	Discharge die specification	Discharge die specification
Discharge die material	Tungsten carbide	Power supply	Power supply

Certifications
Company Profile Changchun Intelligent Instrument Equipment Co., Ltd. stands as a beacon of technological prowess, skillfully integrating R&D, production, sales, and service since 1989. Boasting 35 years of industry leadership, we are pioneers in China's testing machine sector. Our expertise encompasses the development of optomechanical and electrical integrated testing instruments, analytical tools, and automotive parts testers. With ISO9001 certification, our commitment to excellence remains unwavering.
As a high-tech enterprise, Changchun Intelligent Instrument Equipment Co., Ltd. champions innovative design methodologies, harnessing its unique design and development expertise. Conforming to numerous national and international standards, including those from Germany, America, and Japan, we have pioneered over a dozen state-of-the-art testing, analytical, and automotive part instruments.
